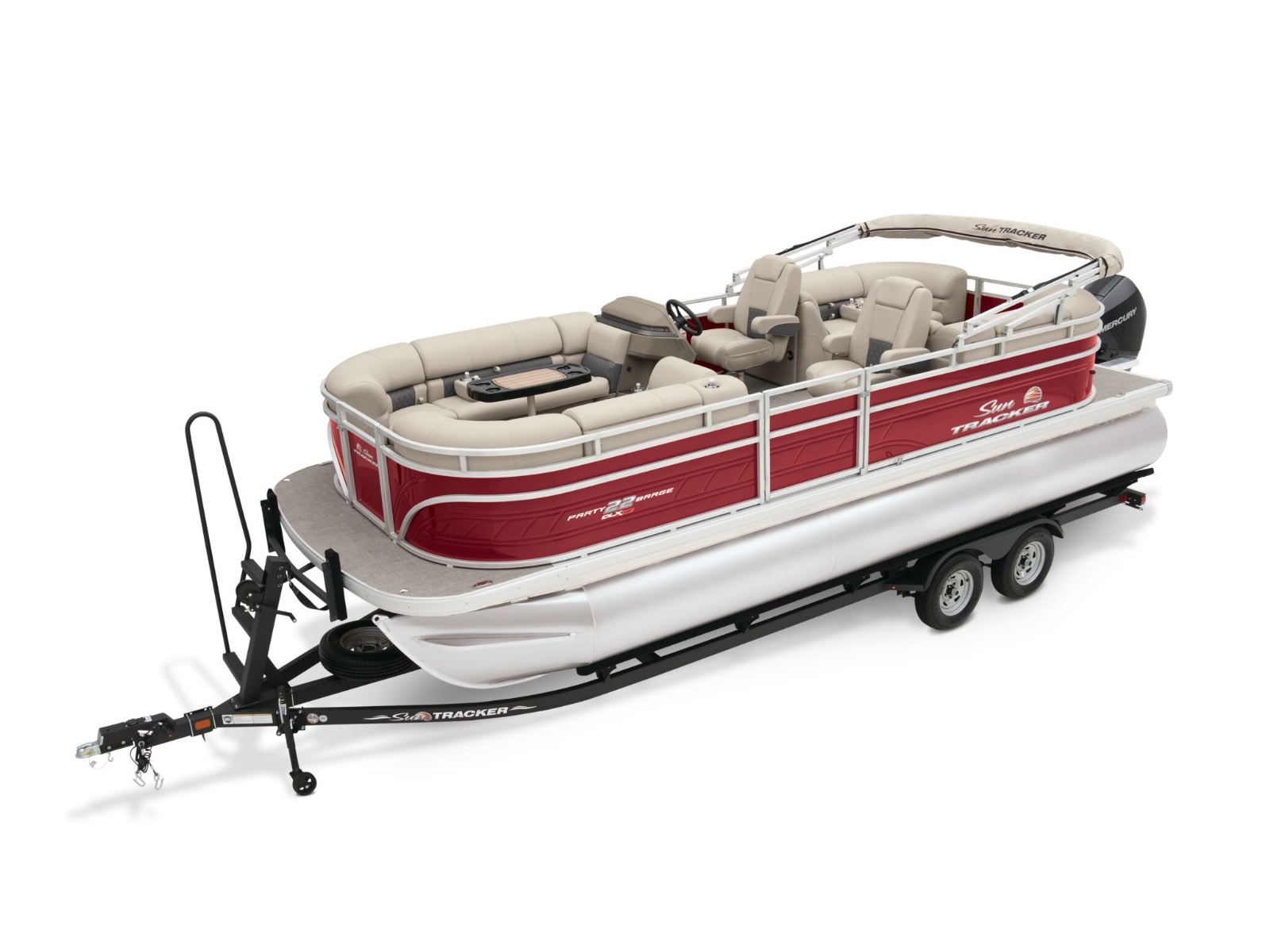

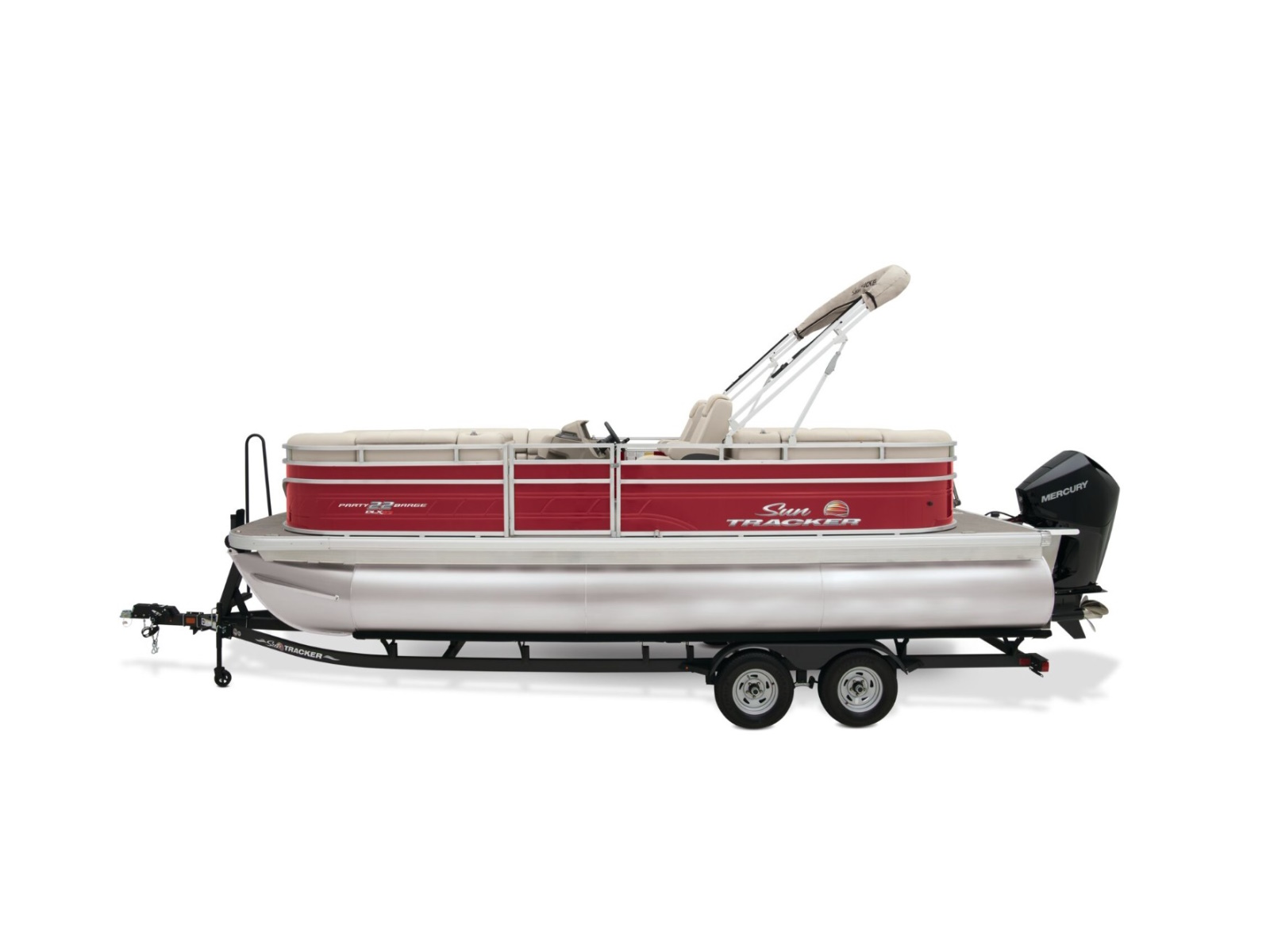

2026 Sun Tracker Party Barge 22 XP3 200 L FourStroke

2026 Sun Tracker Party Barge 22 XP3 200 L FourStroke

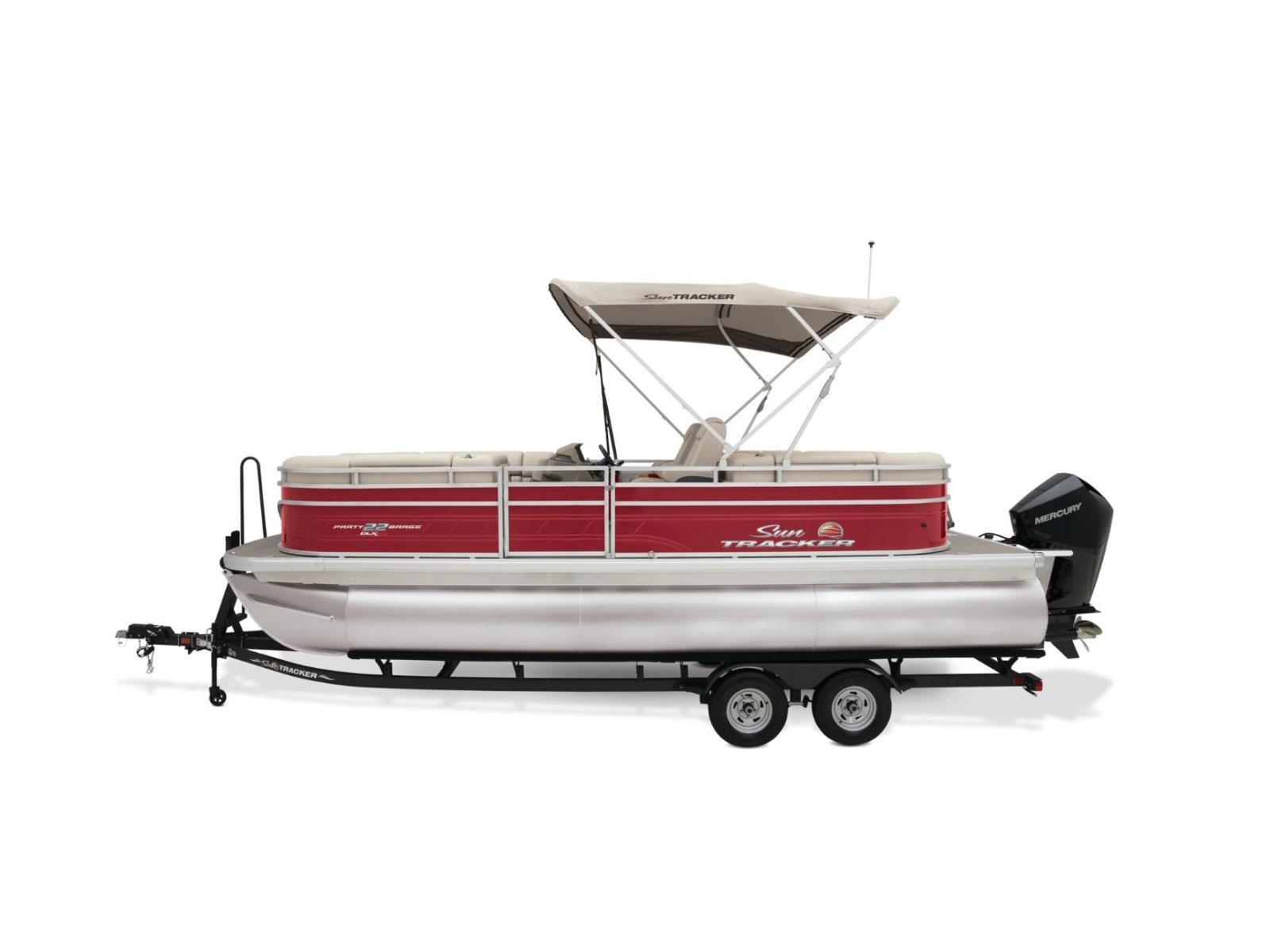

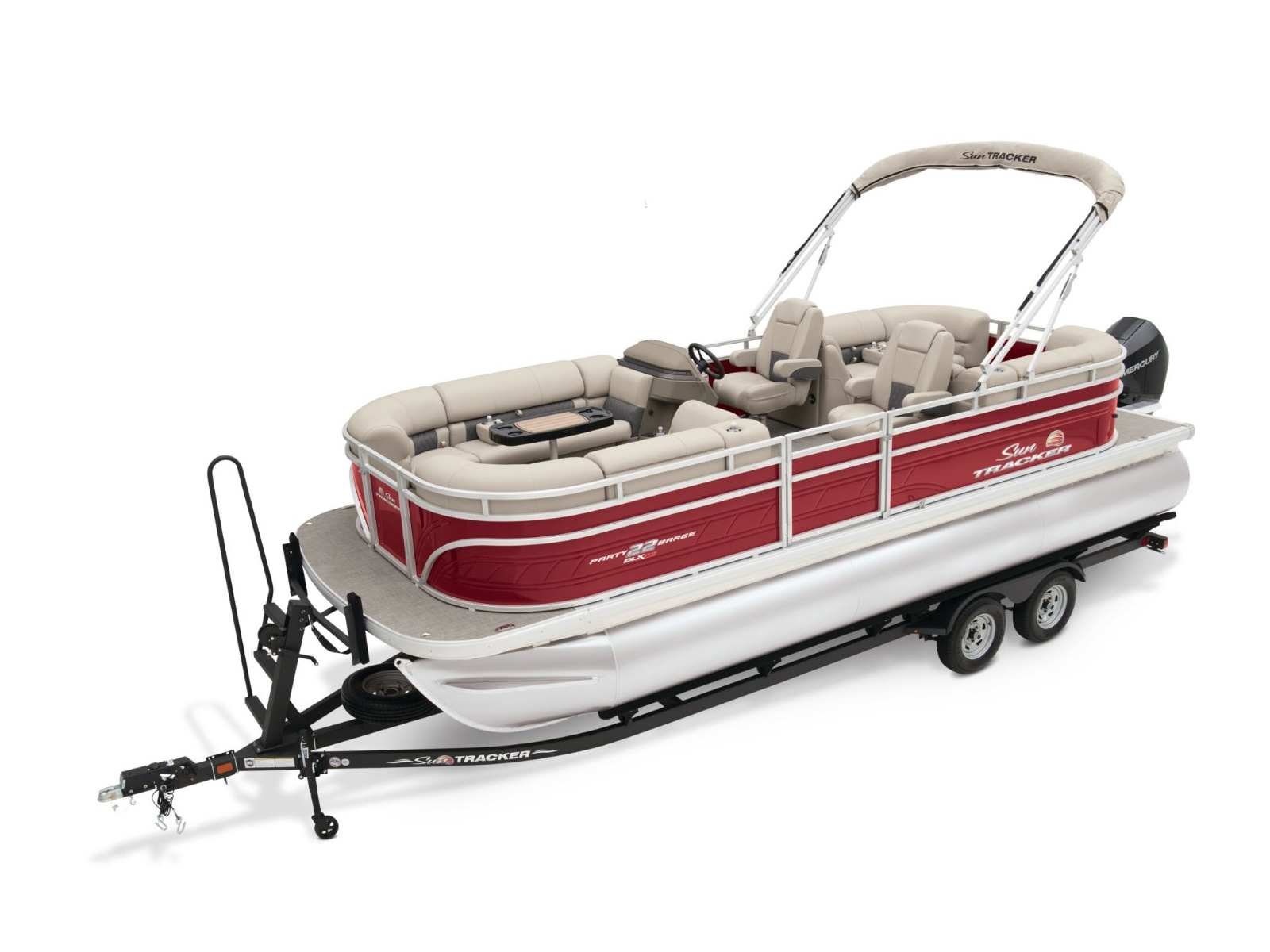

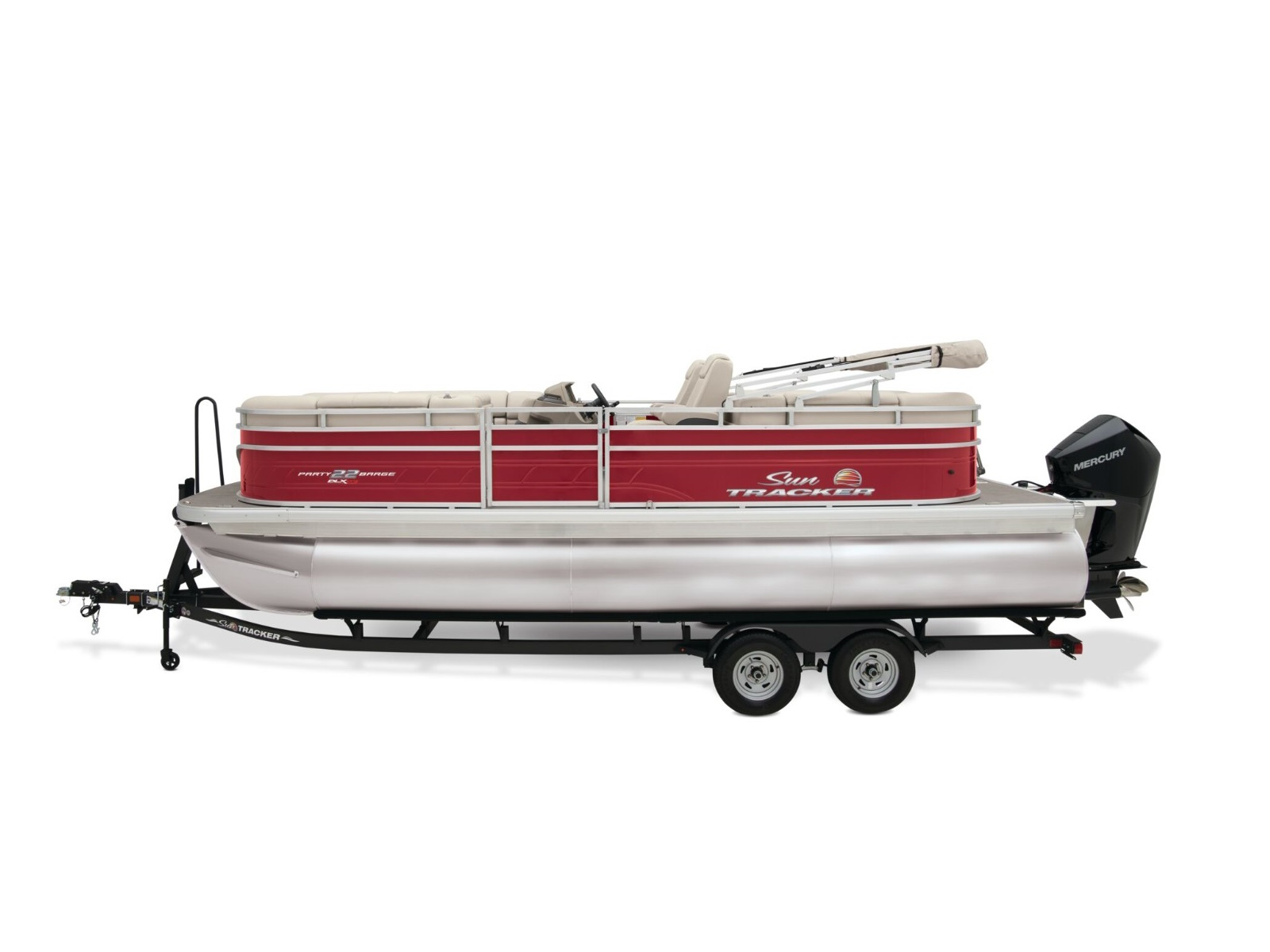

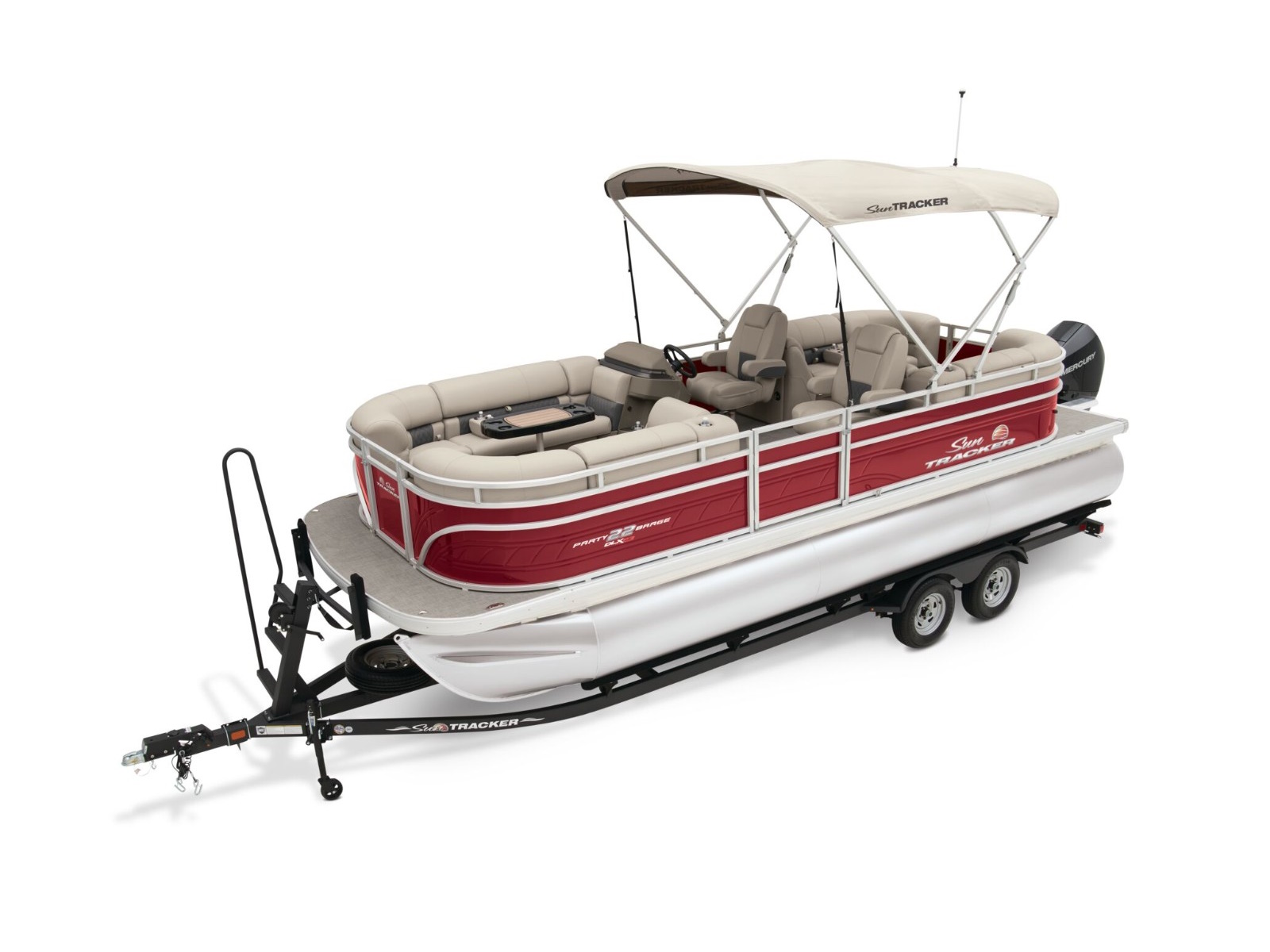

Why settle for 2 when you can get 3? The 2025 PARTY BARGE® 22 XP3 is the luxury tritoon boat that's going to turn your lake adventures up to 11!

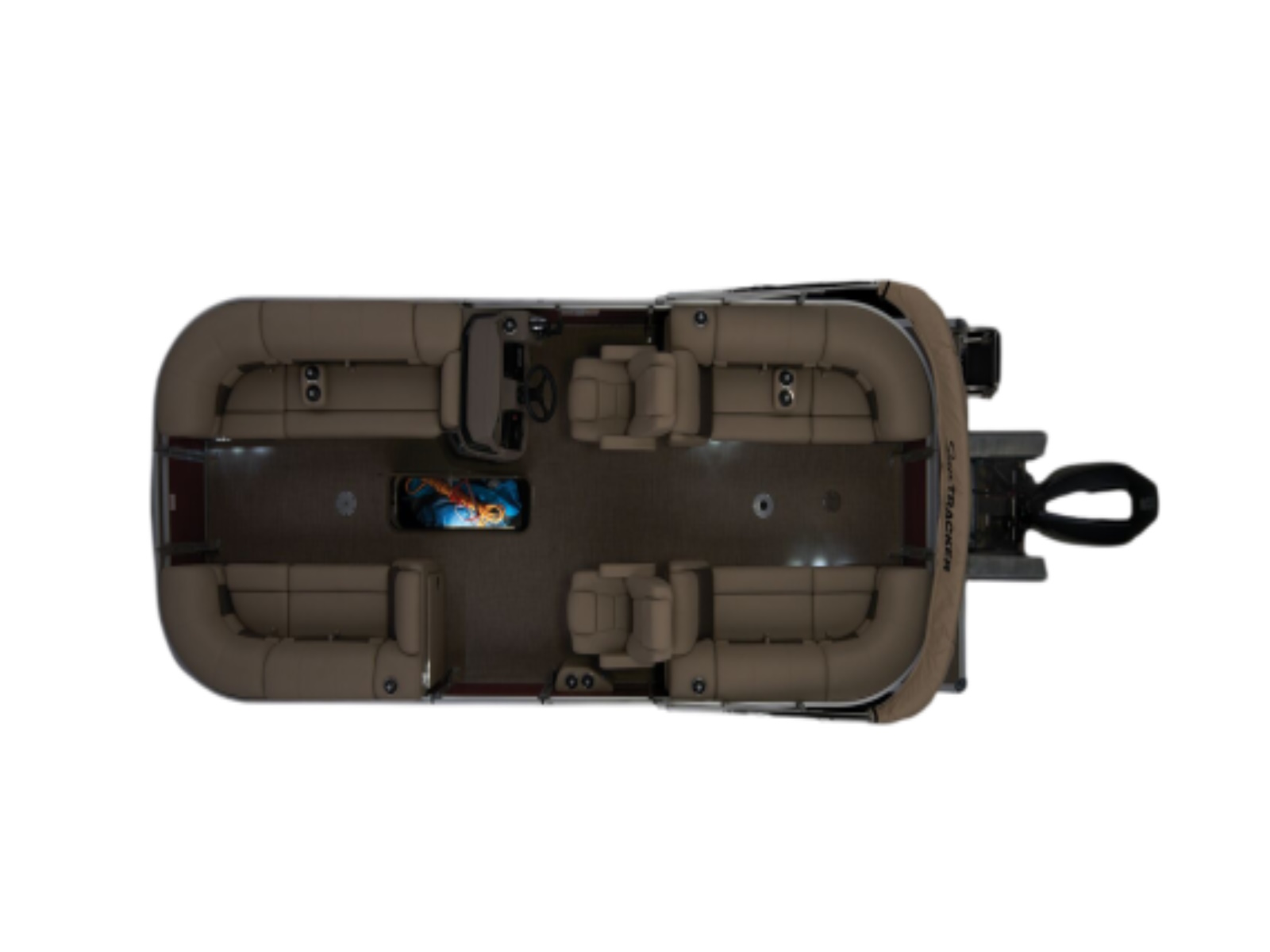

Speaking of 11—that's how big a crew this spacious SUN TRACKER® holds! And there's room for everyone to relax in this pontoon boat thanks to 4 corner lounges and 2 captain's chairs. Stash and secure plenty of gear in the in-deck storage compartment and the STOW MORE™ system, which puts hidden storage spaces under the lounges' seats and behind the seat backs.

Access the PARTY BARGE® via the 3 inward-swinging gates, which includes a wheelchair-accessible port gate. The 10' QuickLift® bimini top extends out to provide plenty of shade on sunny days. The standard Wet Sounds® stereo is Bluetooth®-compatible and boasts 4 upholstery speakers. 2 in-floor anchor points allow you to customize your space with the included moveable table and optional ski-tow pylon.

This pontoon gets increased performance with the addition of a third pontoon log, as well as lifting strakes, underpinning, and hydraulic steering. The PARTY BARGE® 22 XP3 comes standard with a 150hp Mercury® L FourStroke outboard motor and has a recommended maximum 200hp rating.

Features May Include:

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
• NMMA® certified

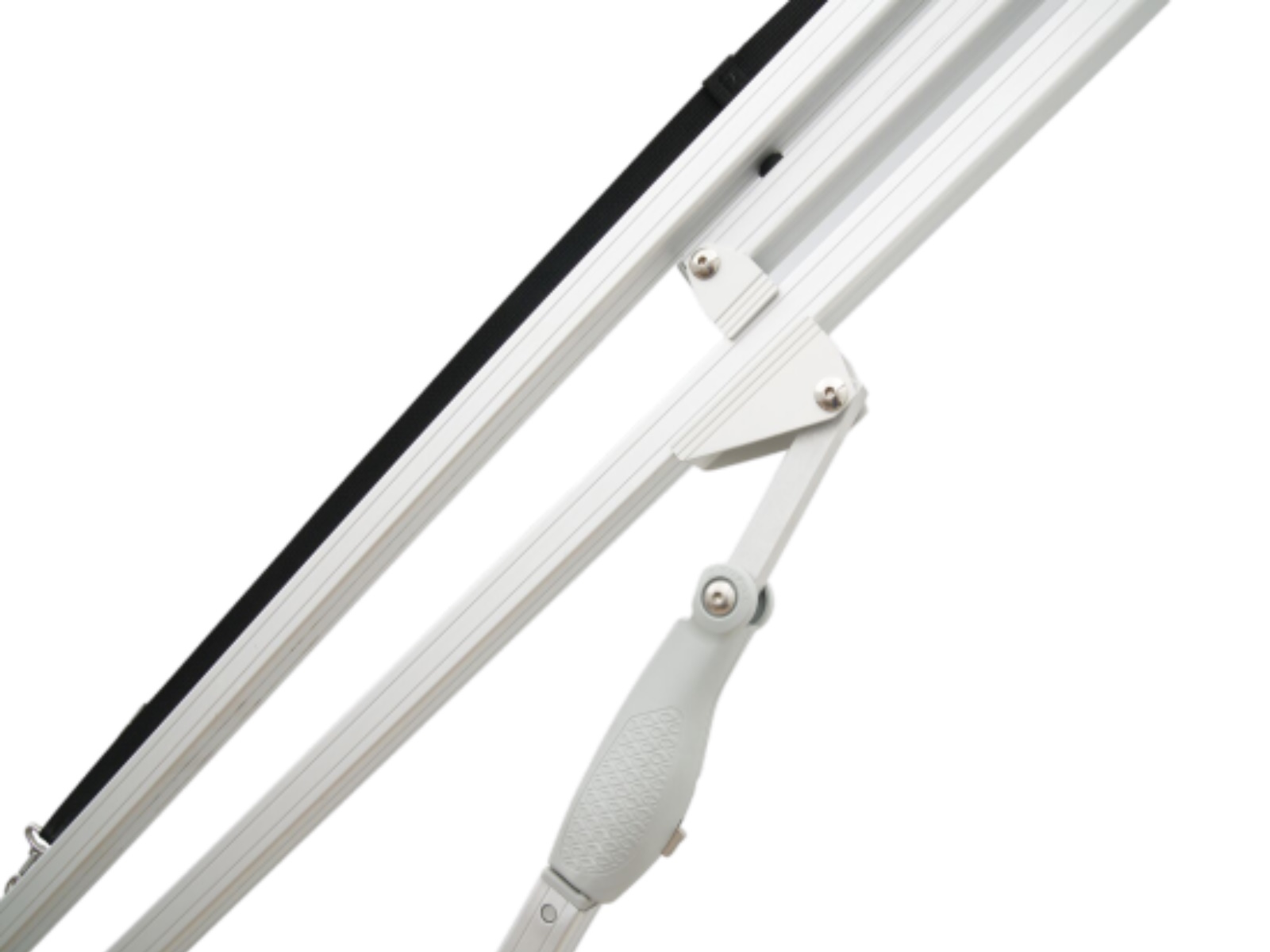

• 10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Copper Red fencing)
• Built-in LED docking lights

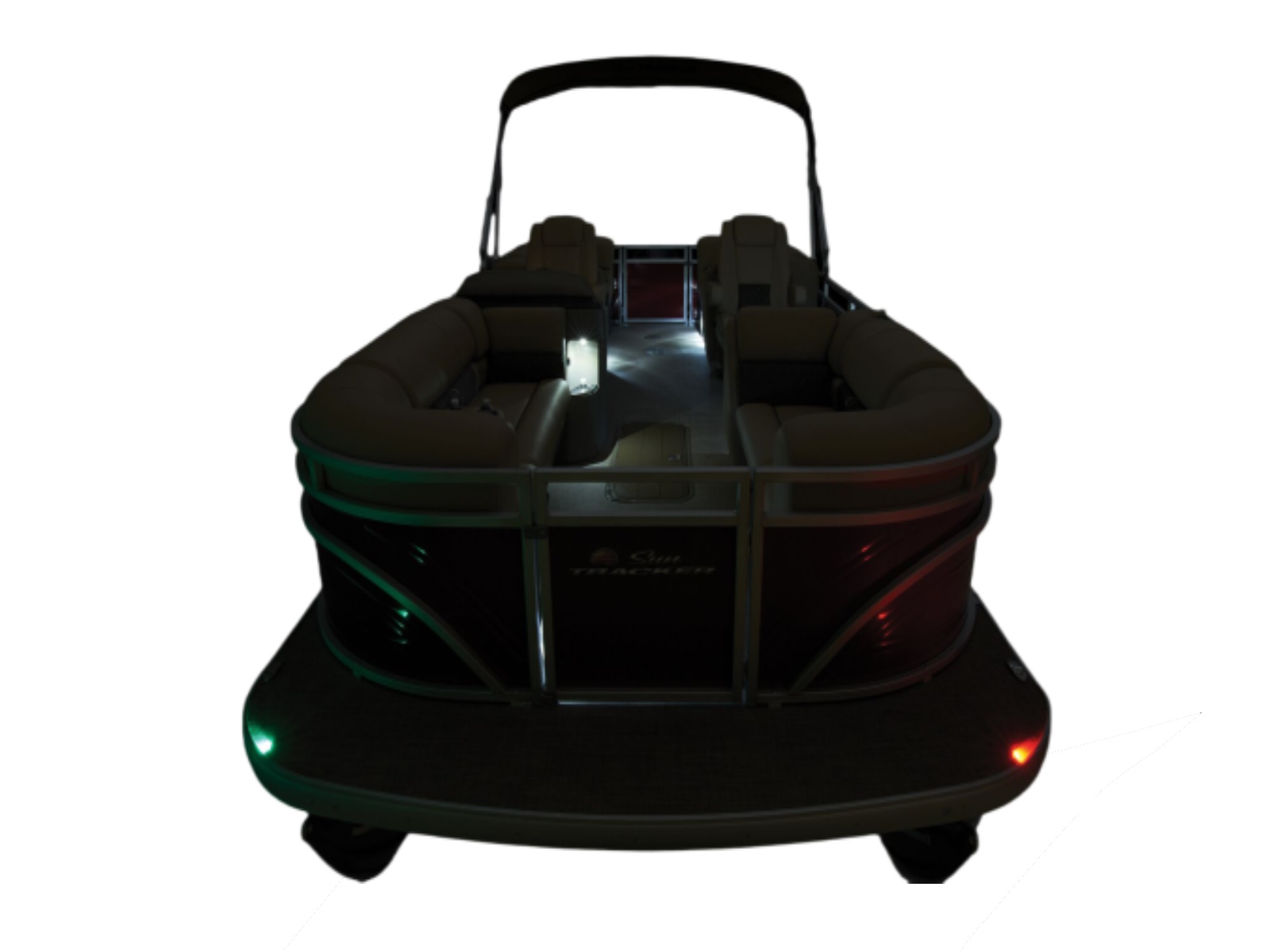

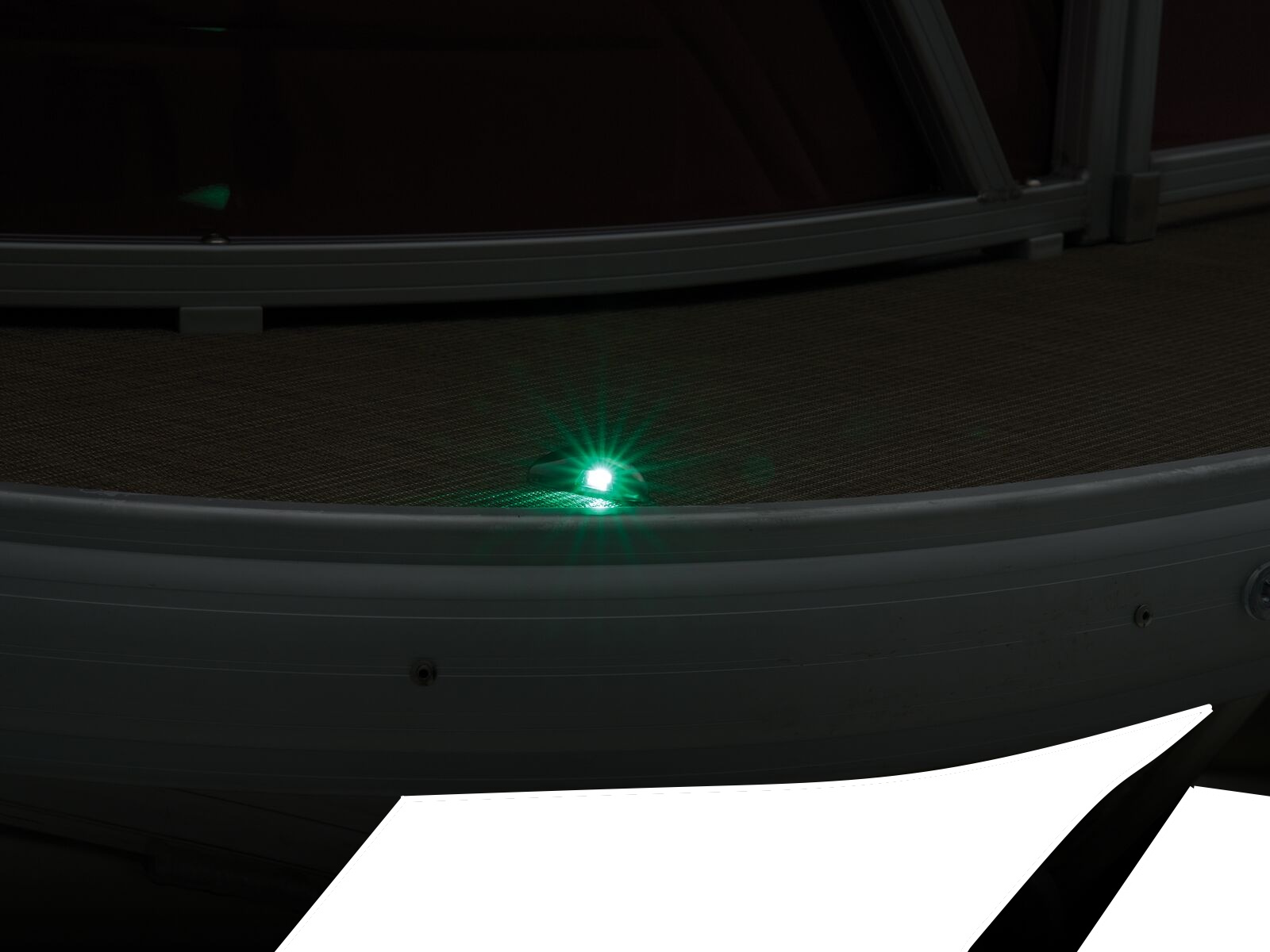

• Built-in LED navigation & anchor lights

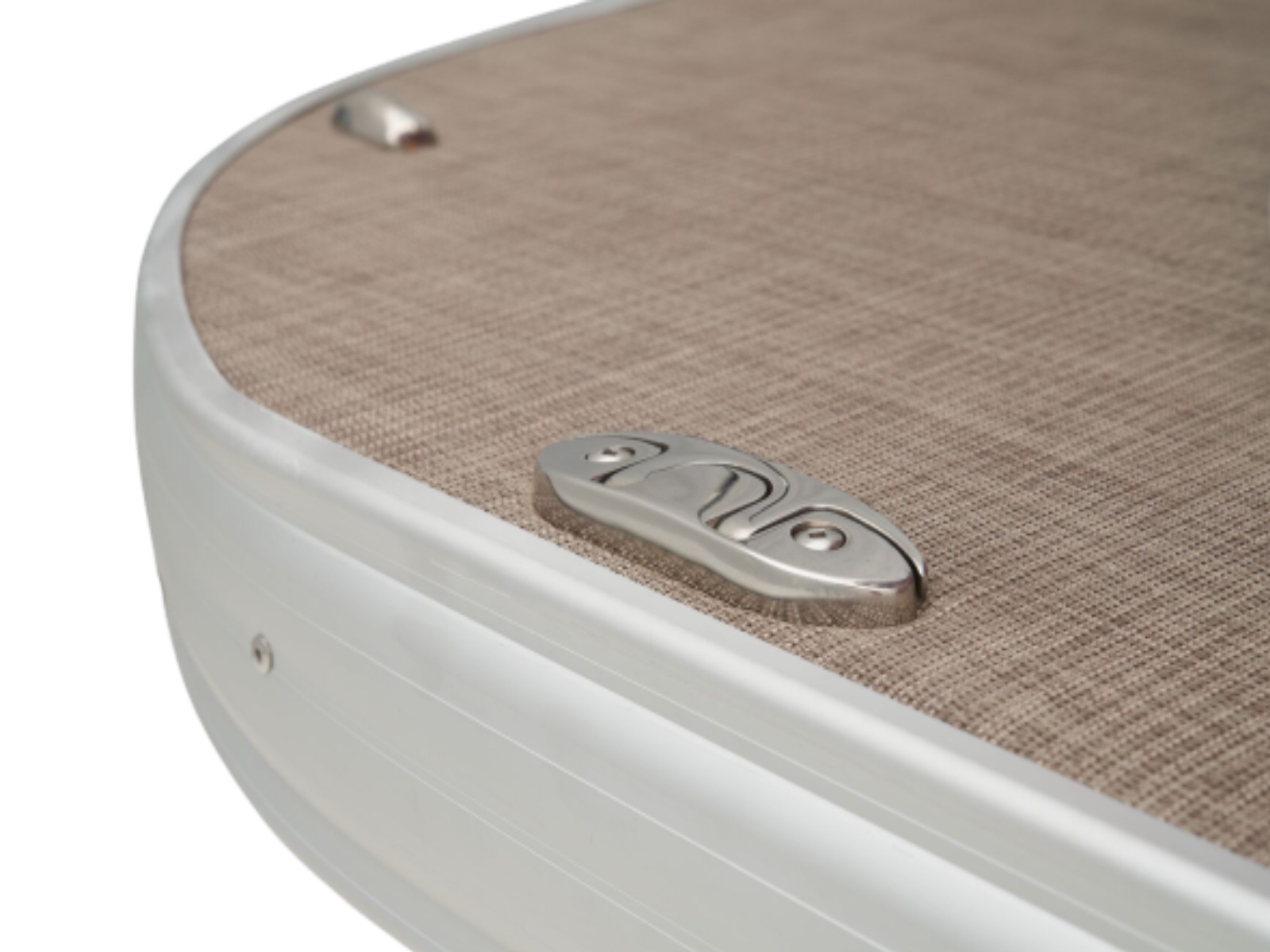

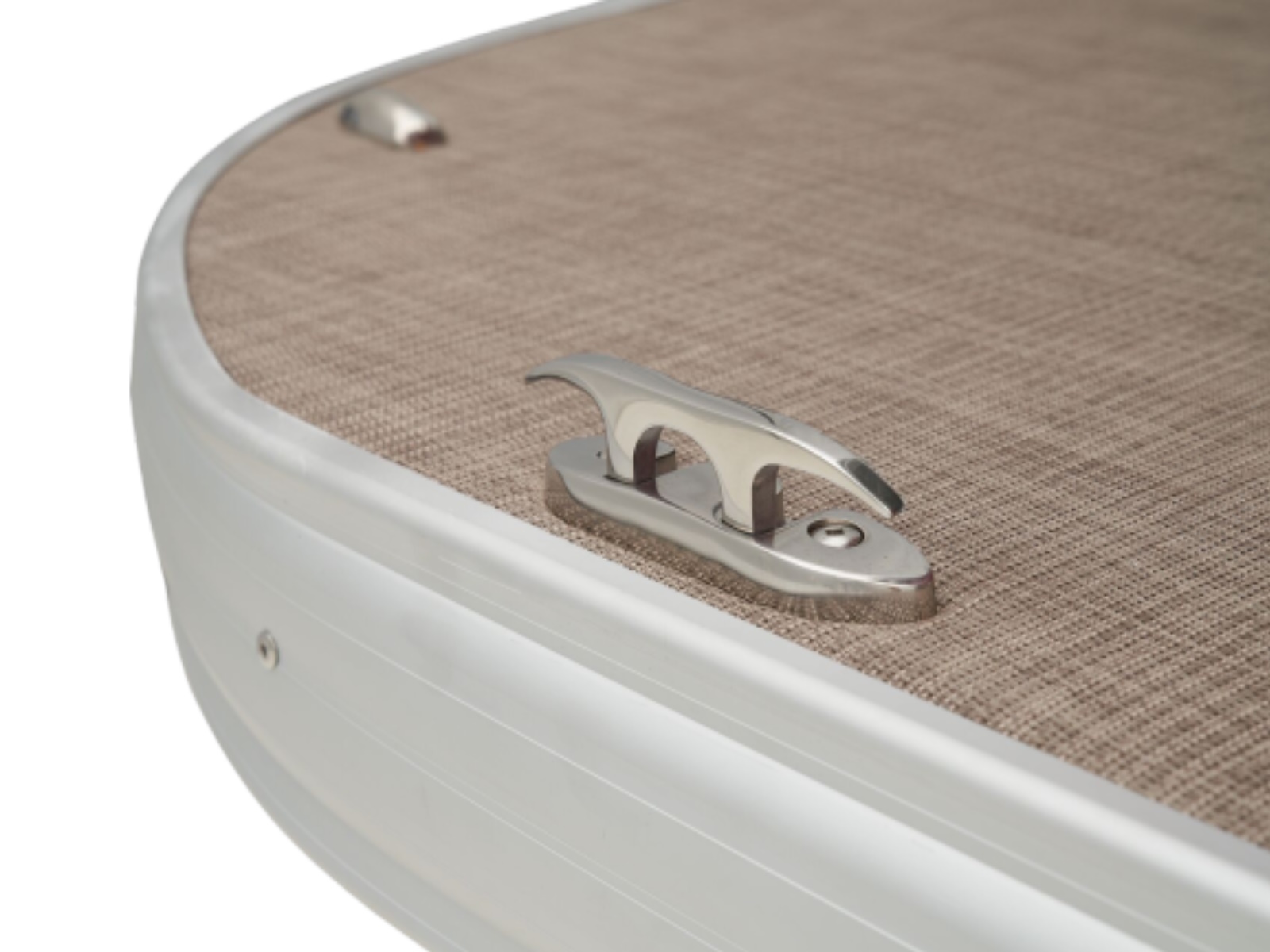

• 4 folding mooring cleats & starboard side tie-off mooring eye
• Port wheelchair-accessible gate

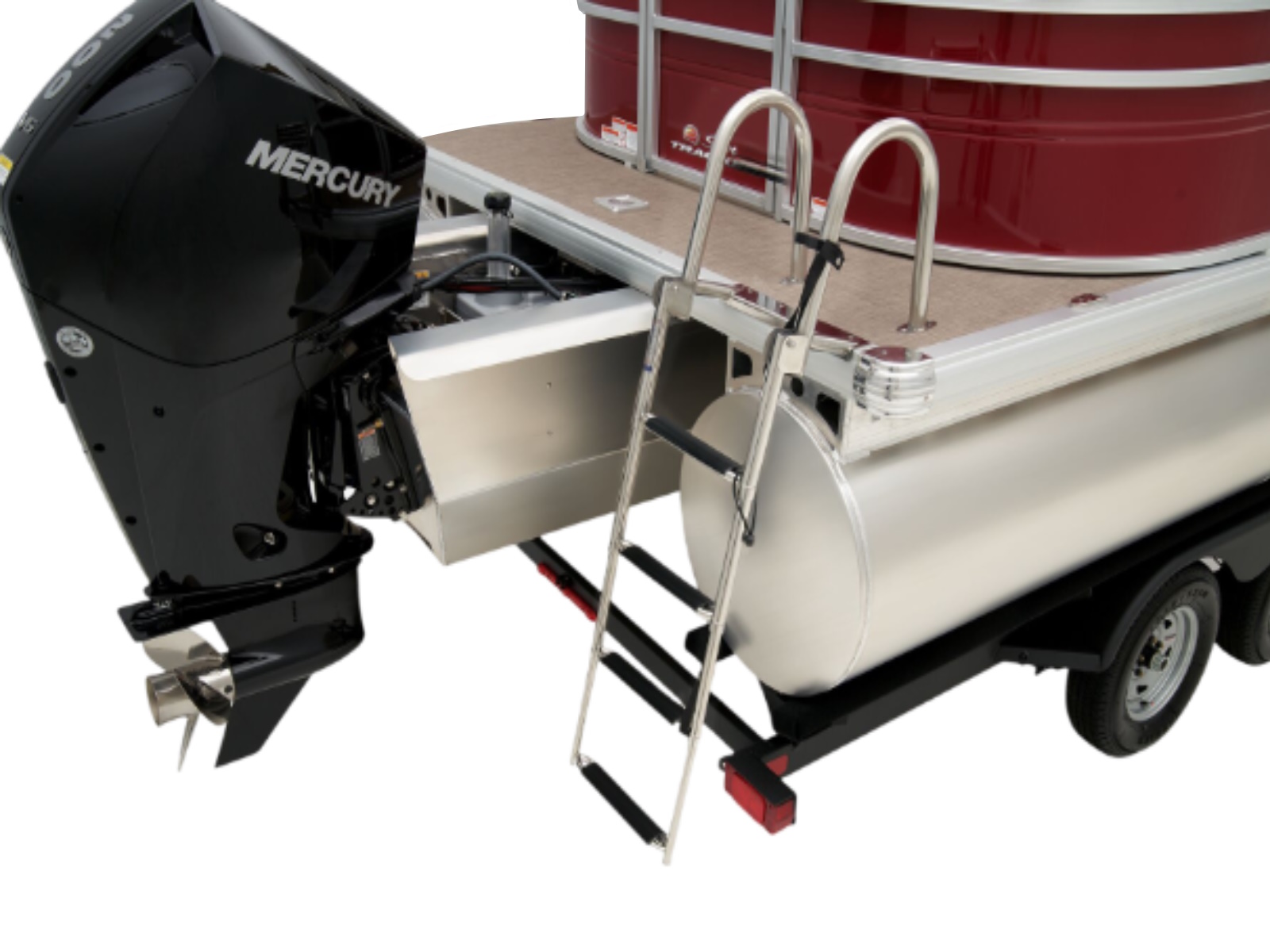

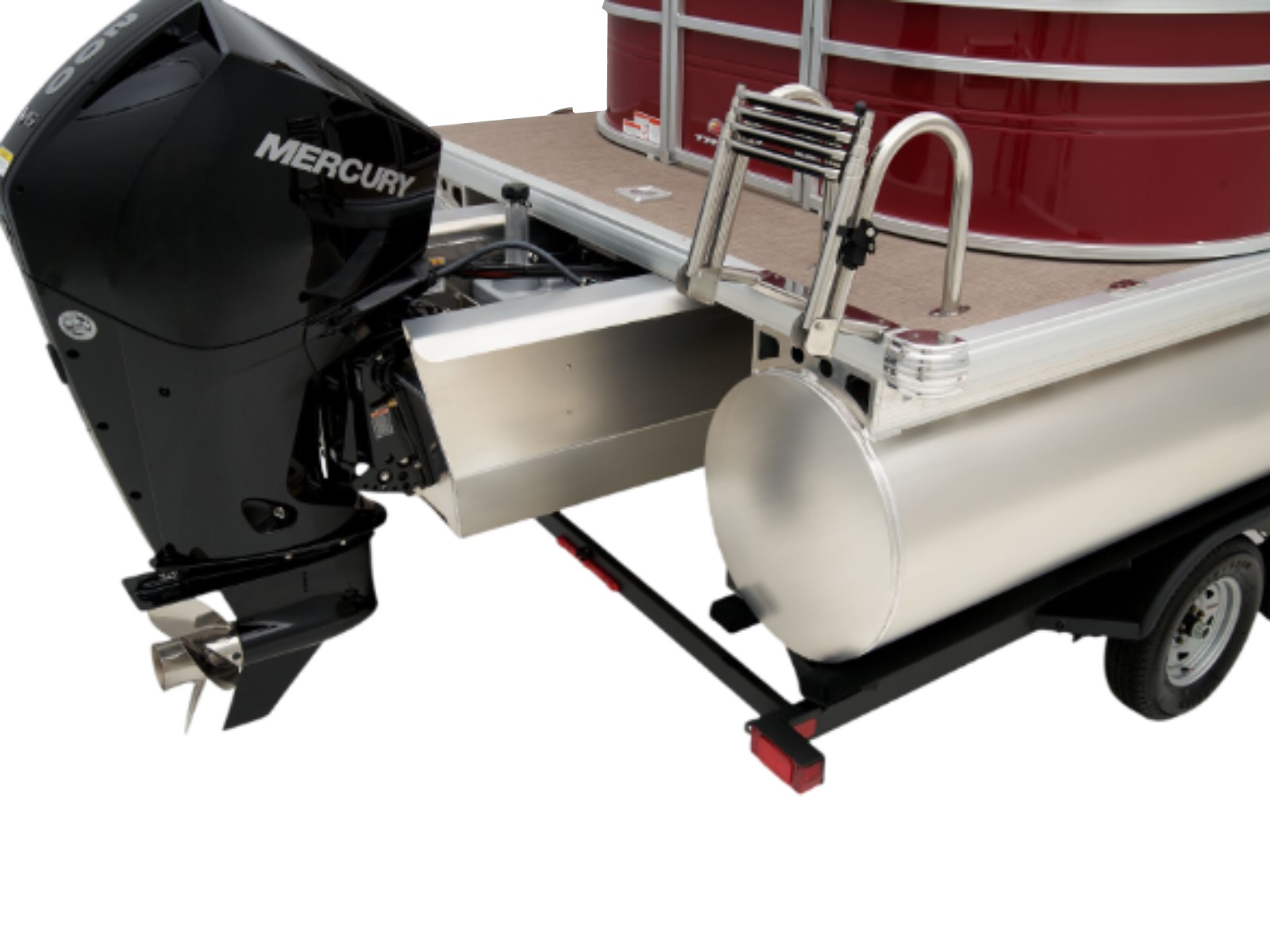

• Rear boarding platform w/4-step telescoping boarding ladder & grab rails

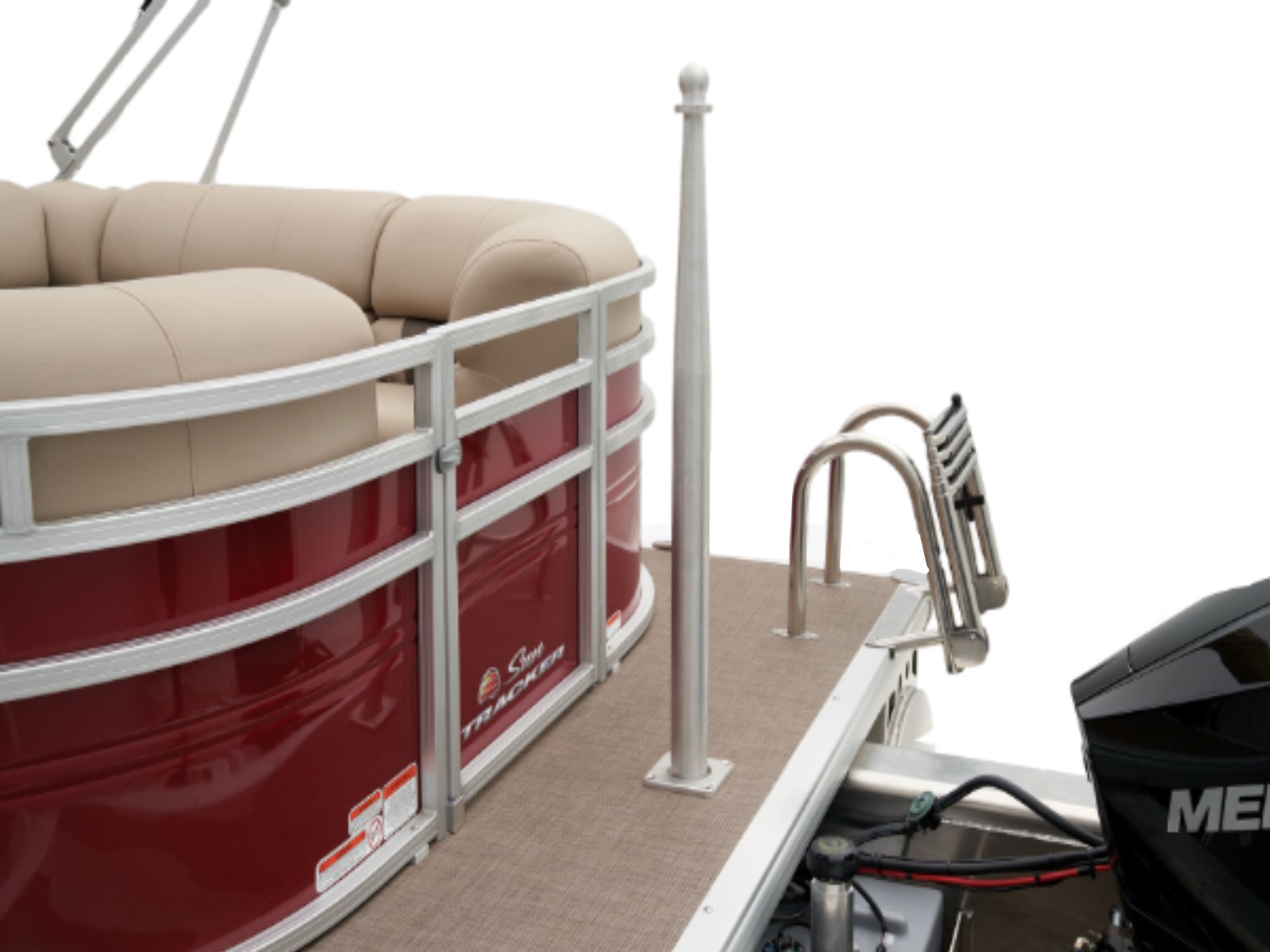

• Aft receptacle base for optional ski tow pylon
• Motor-stop safety lanyard
• Fire extinguisher
• Horn

Console

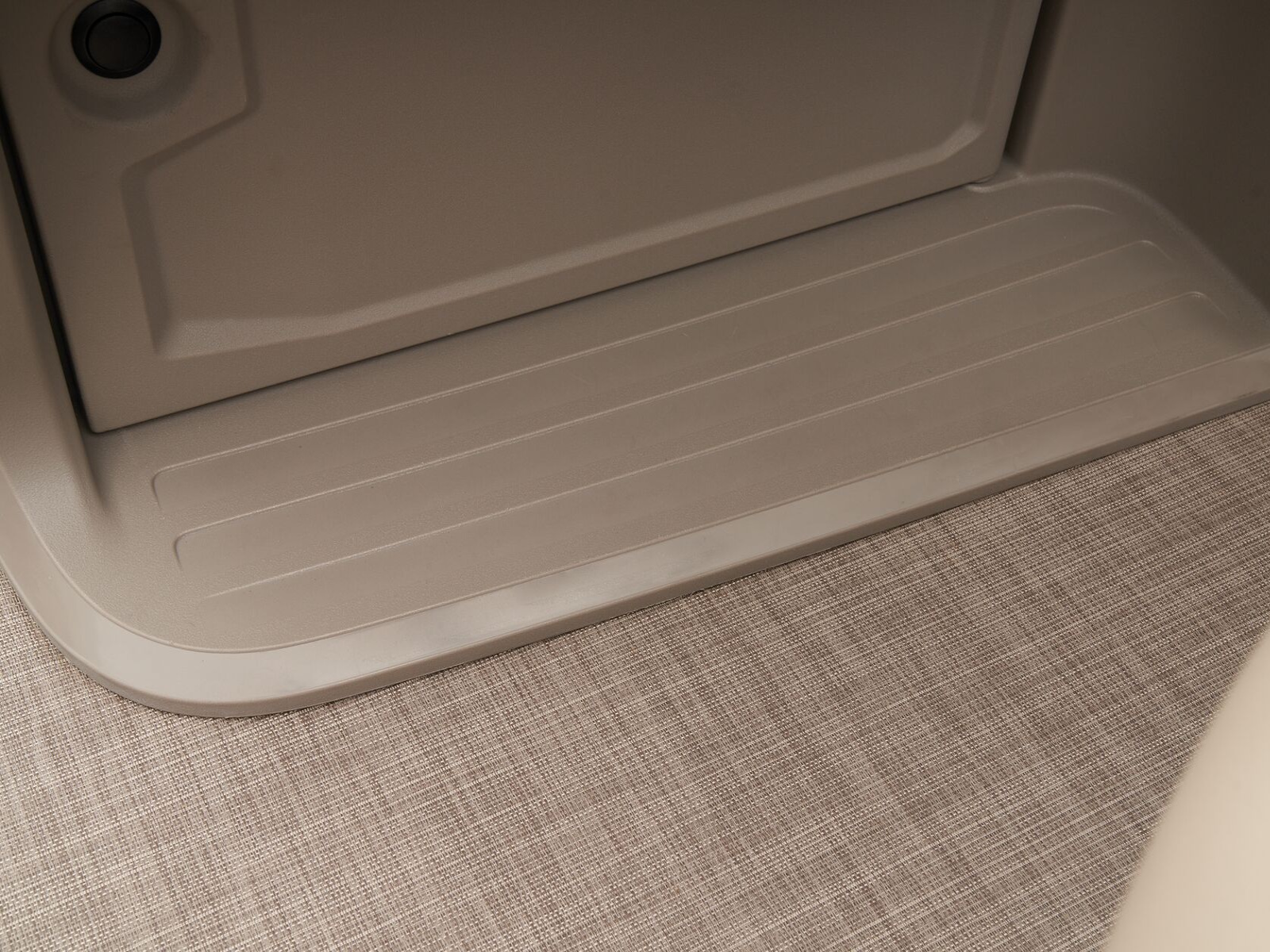

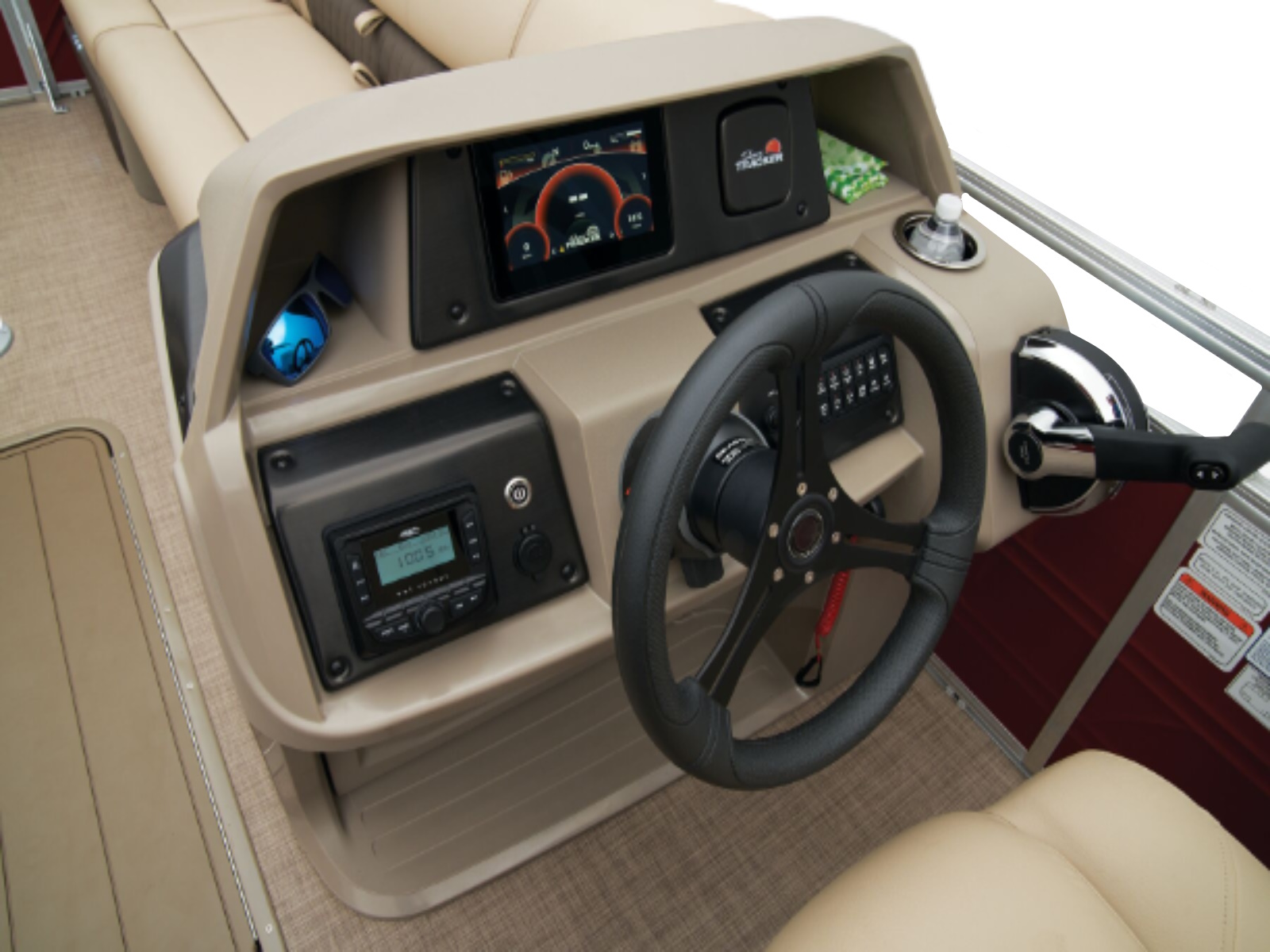

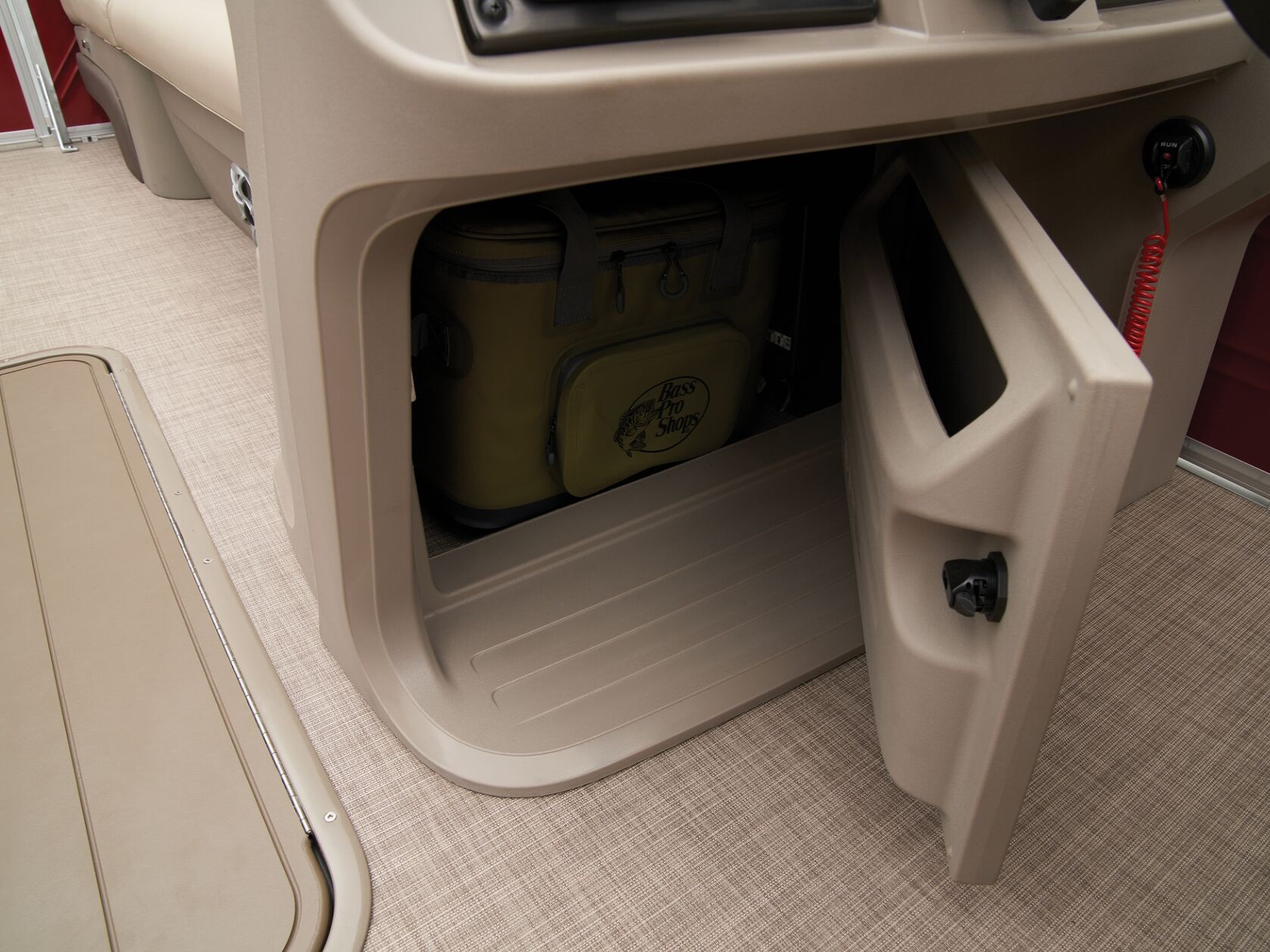

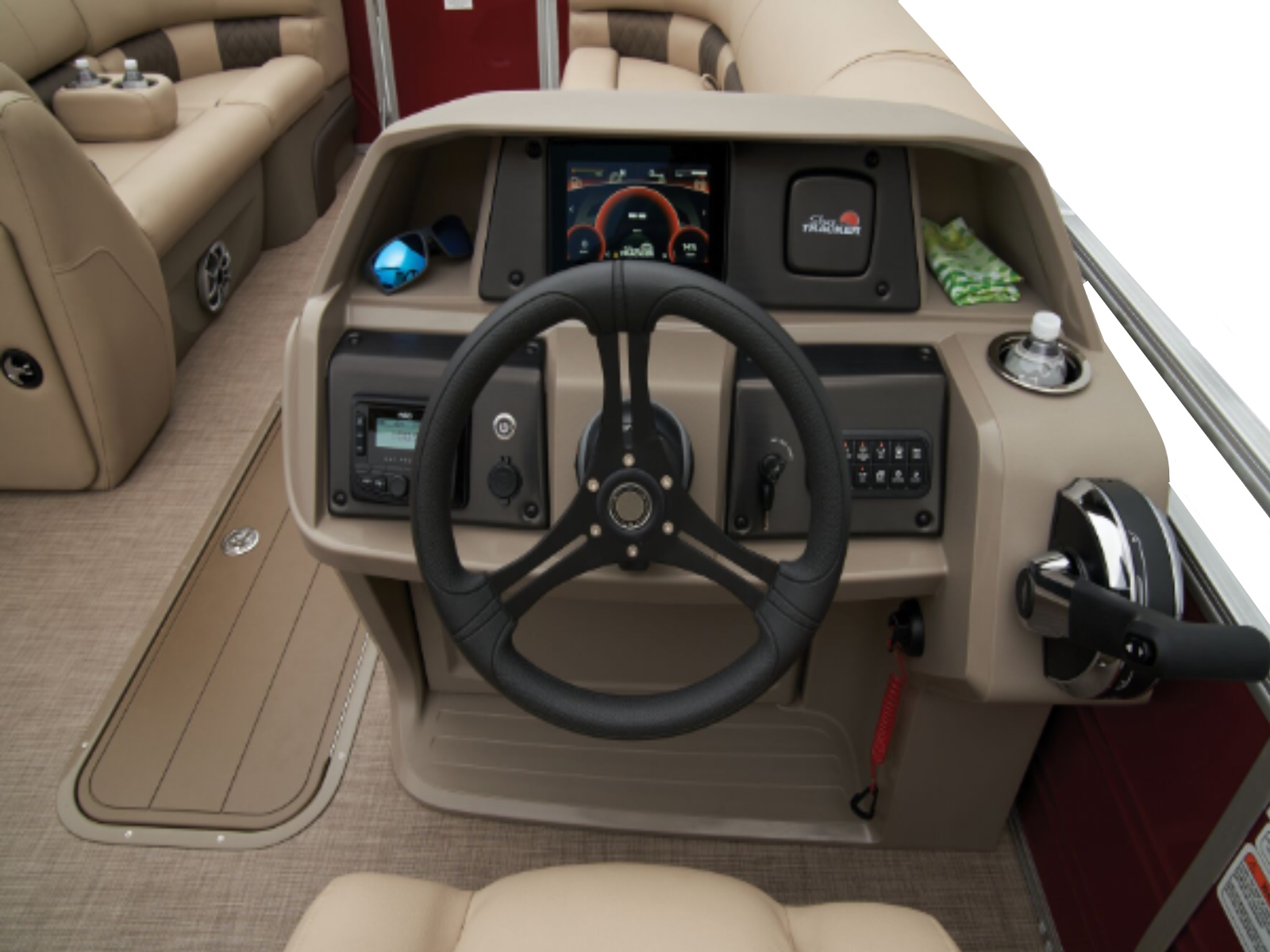

• Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

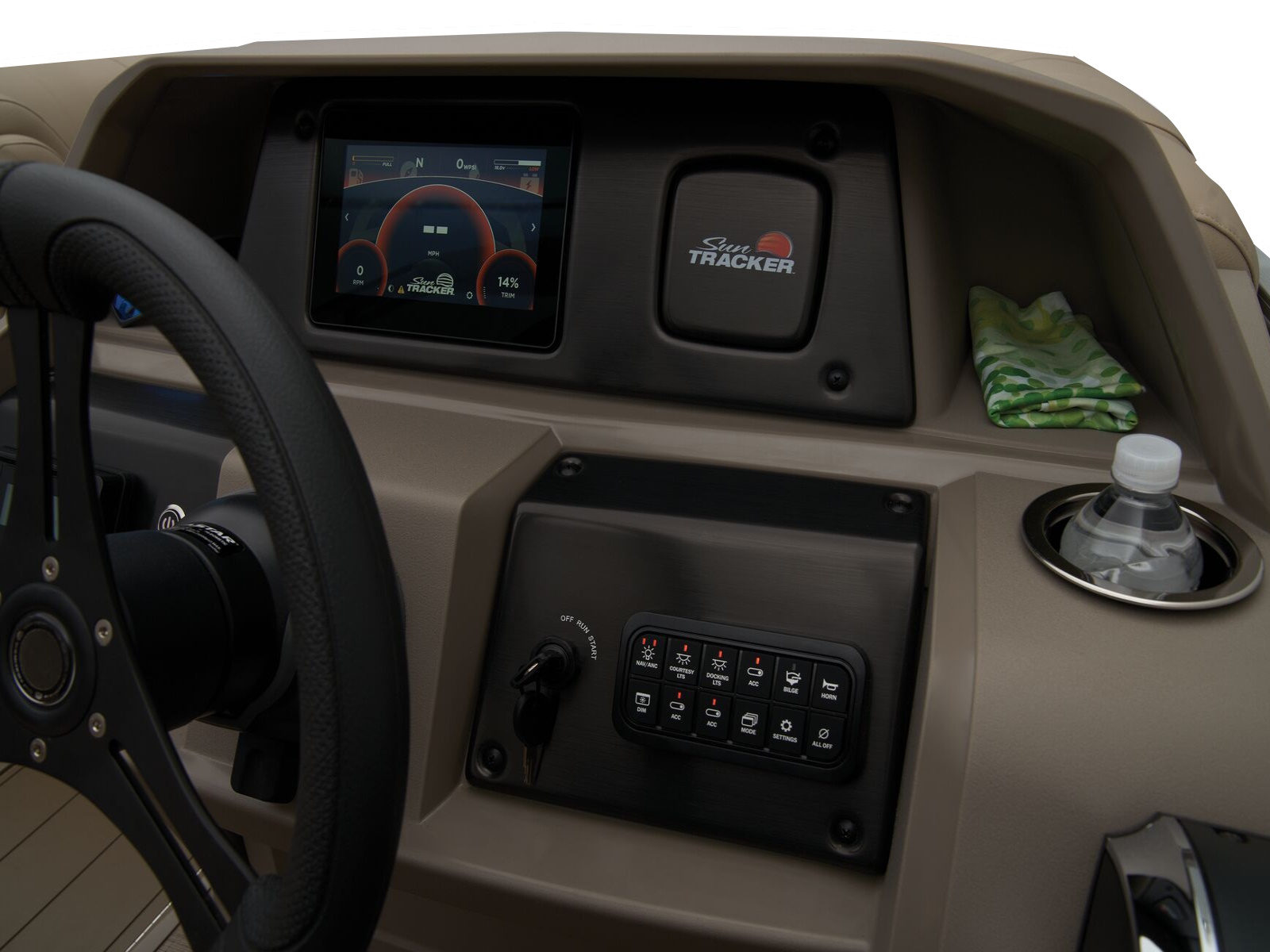

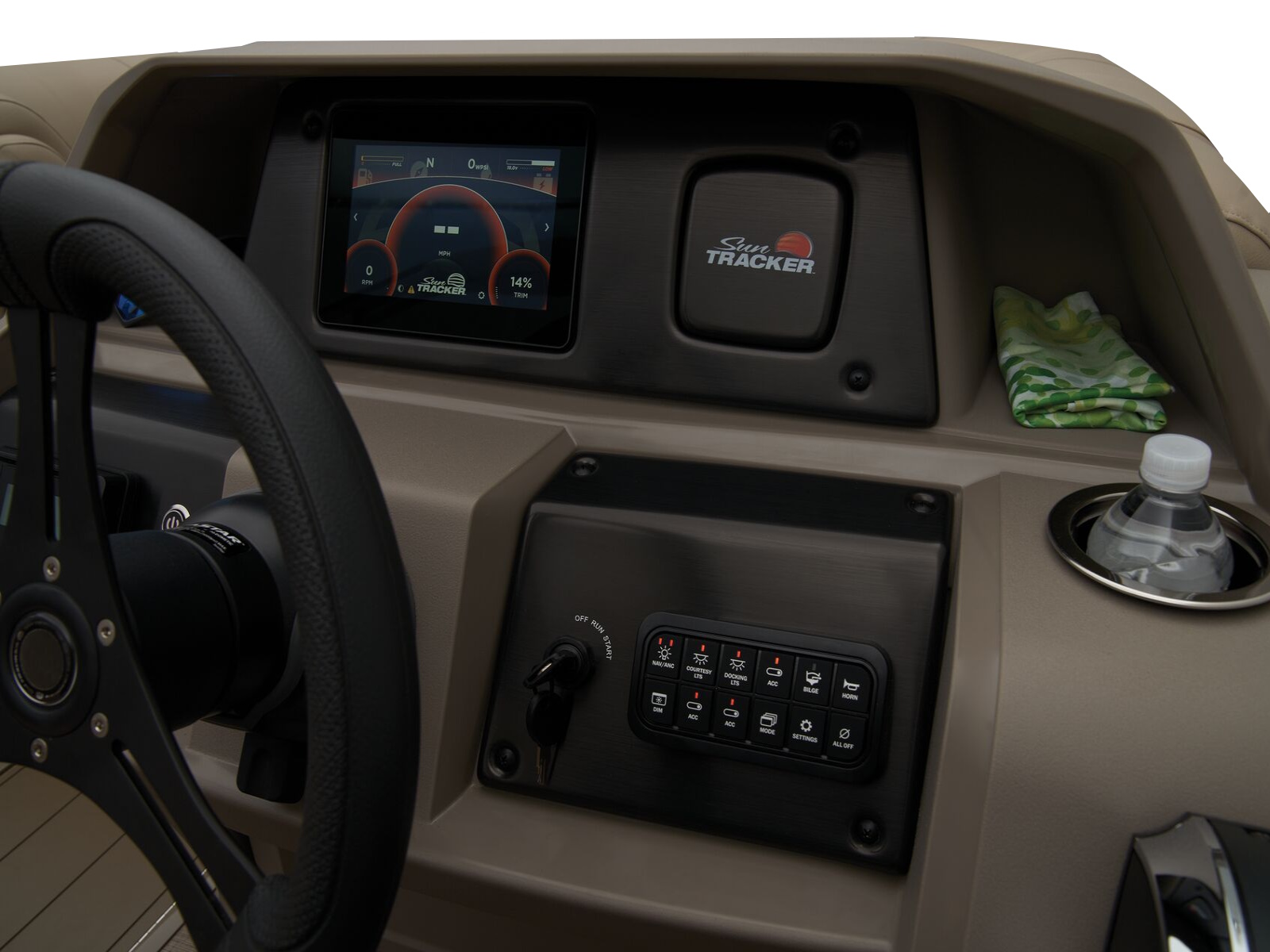

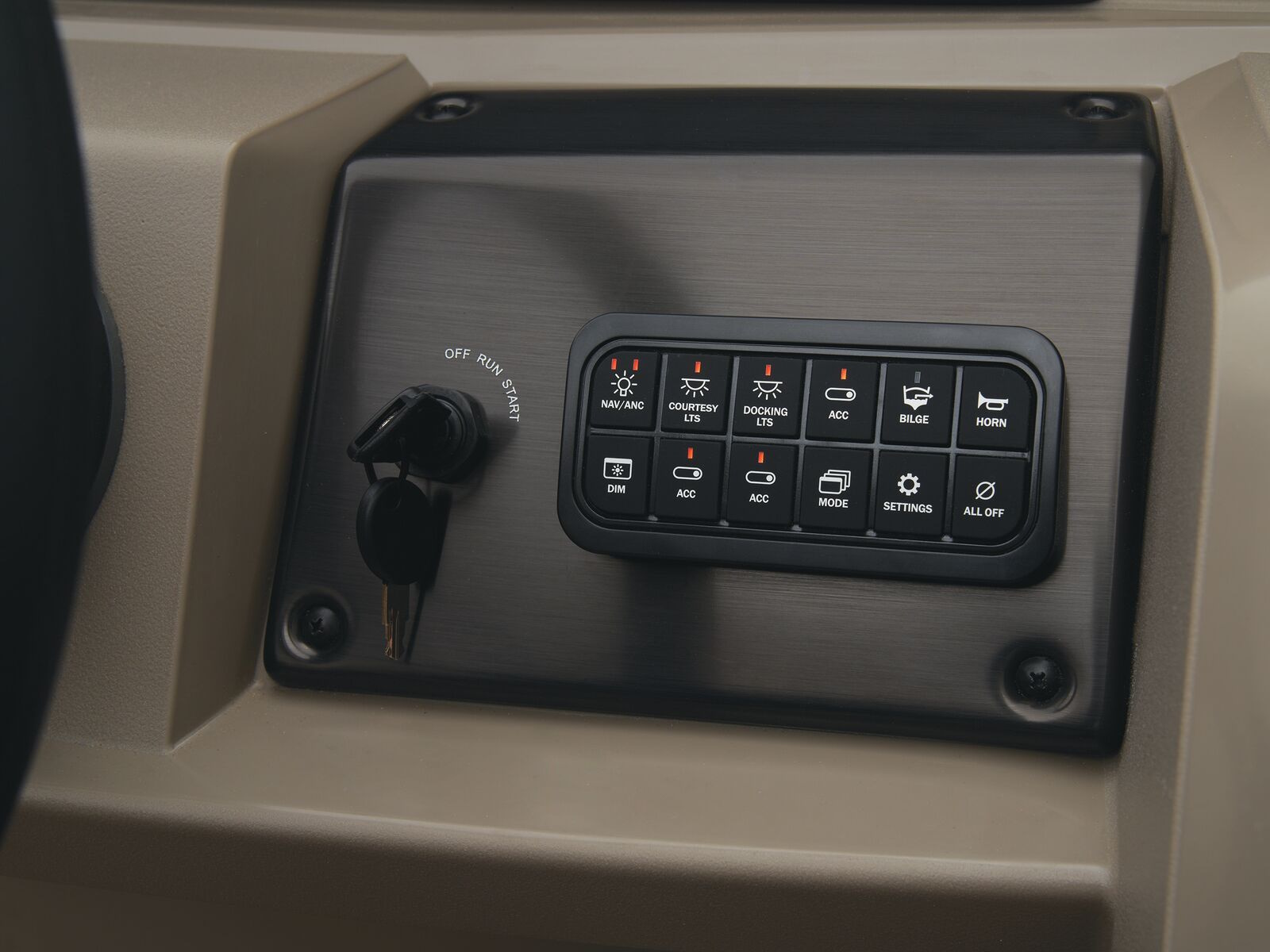

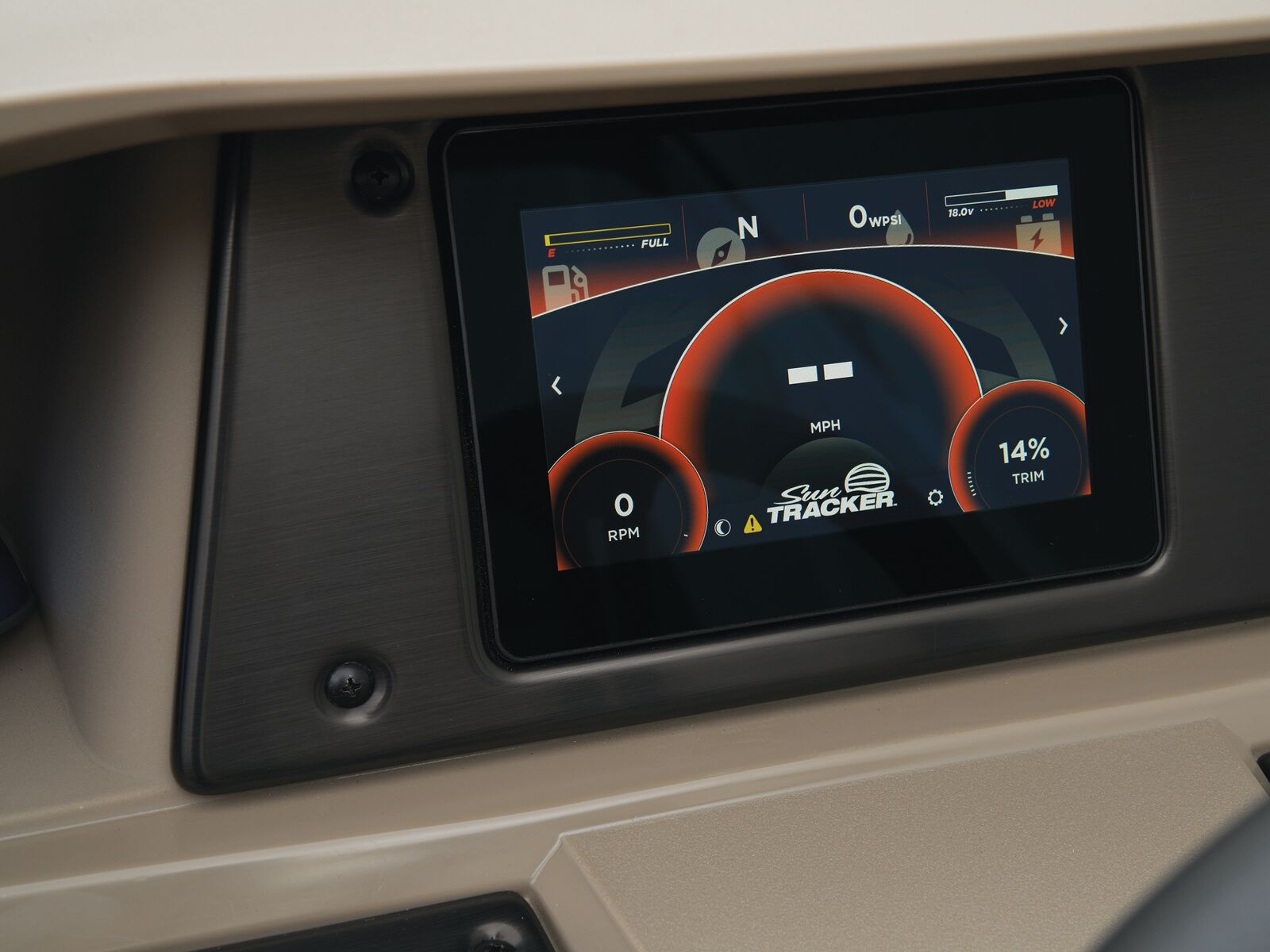

• SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel

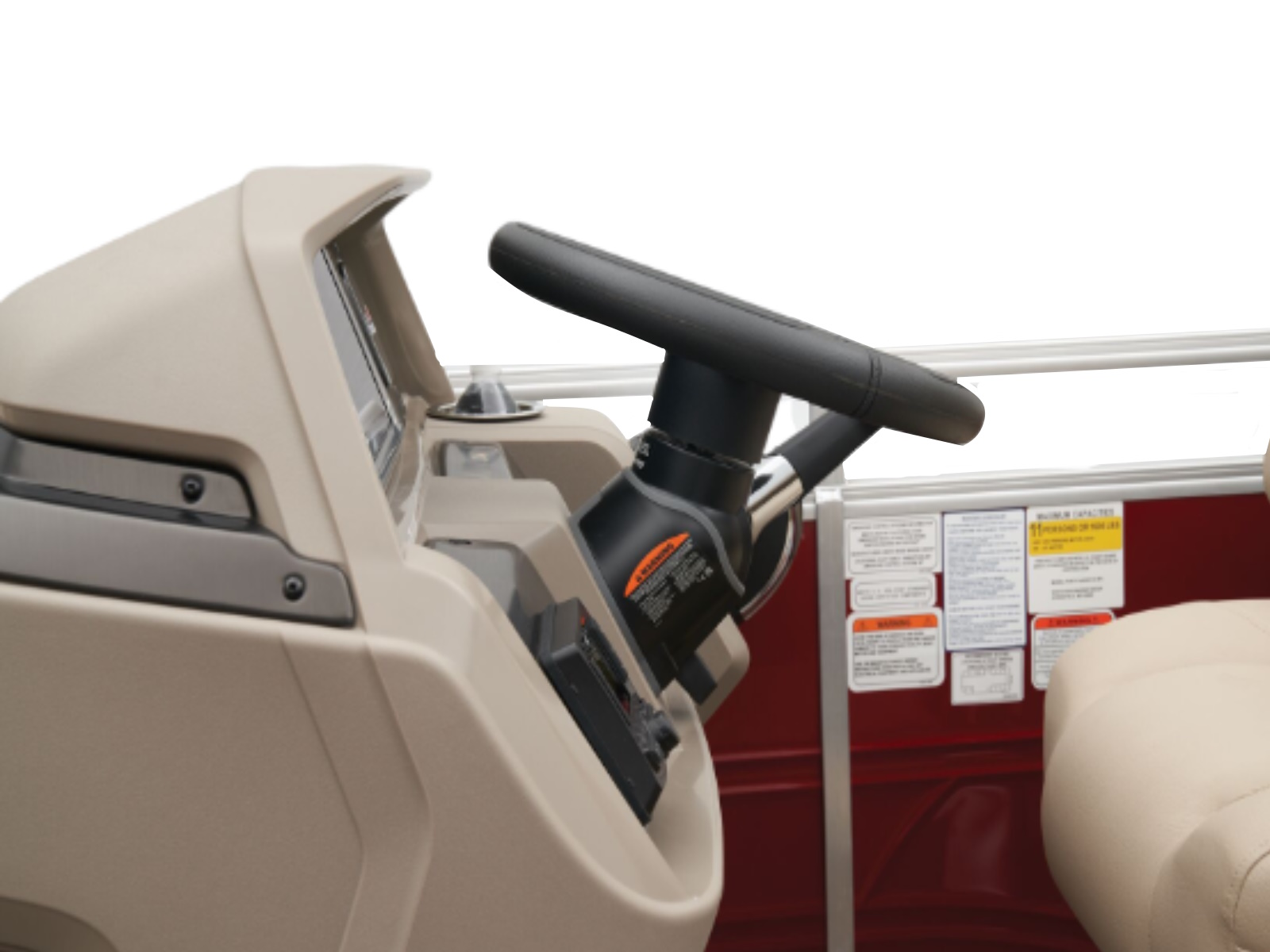

• Tilt hydraulic steering w/deluxe soft-touch steering wheel

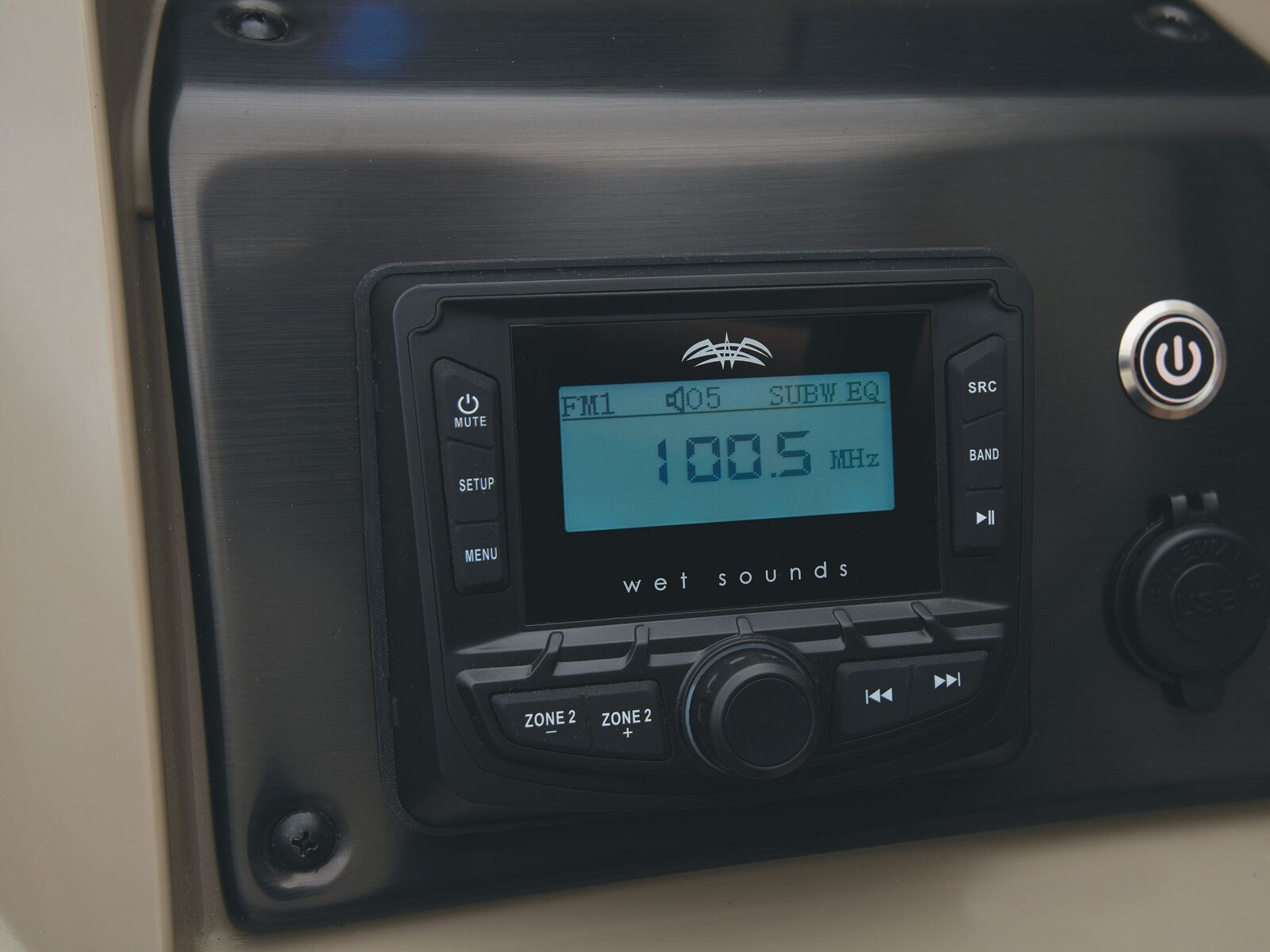

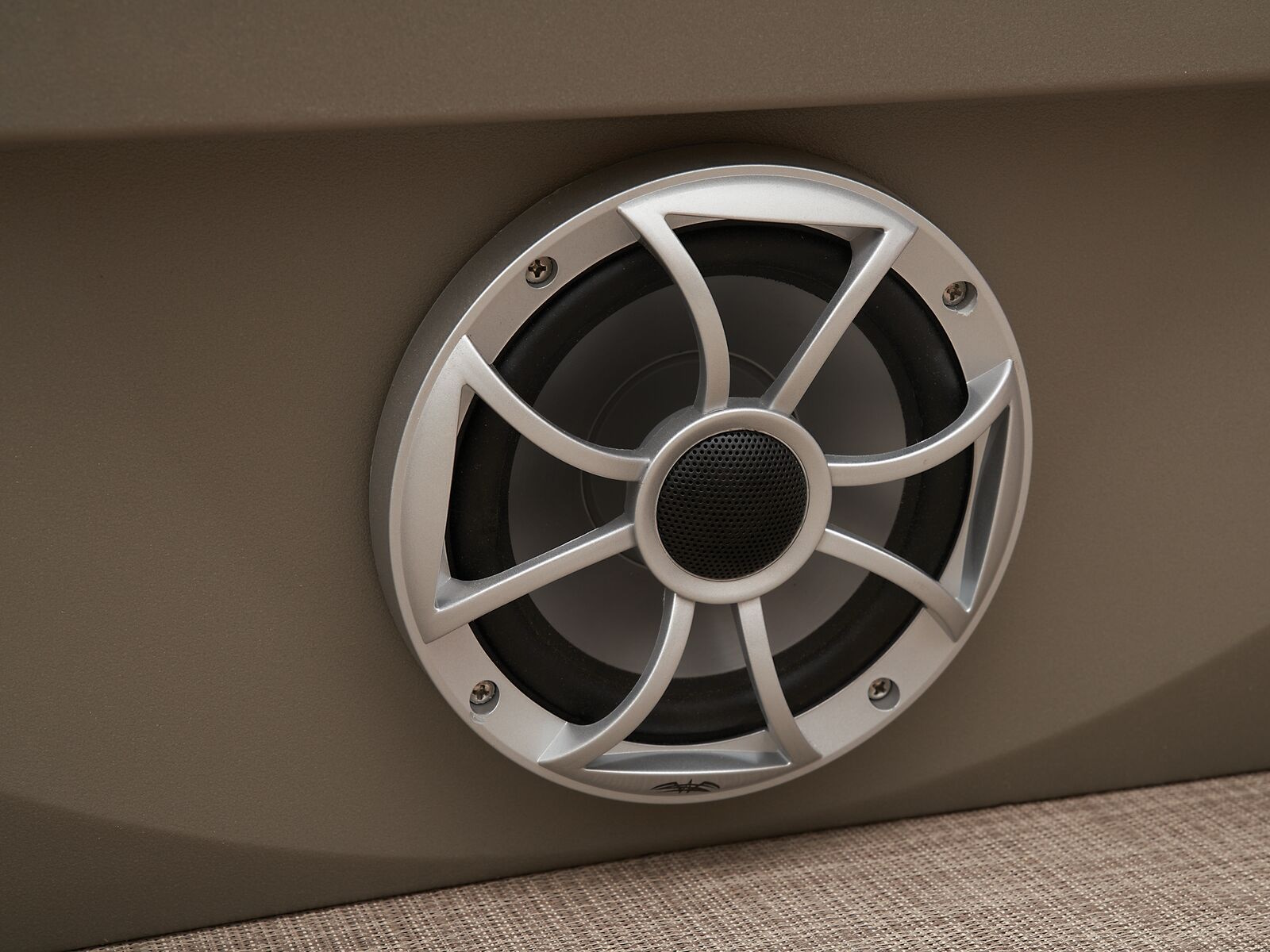

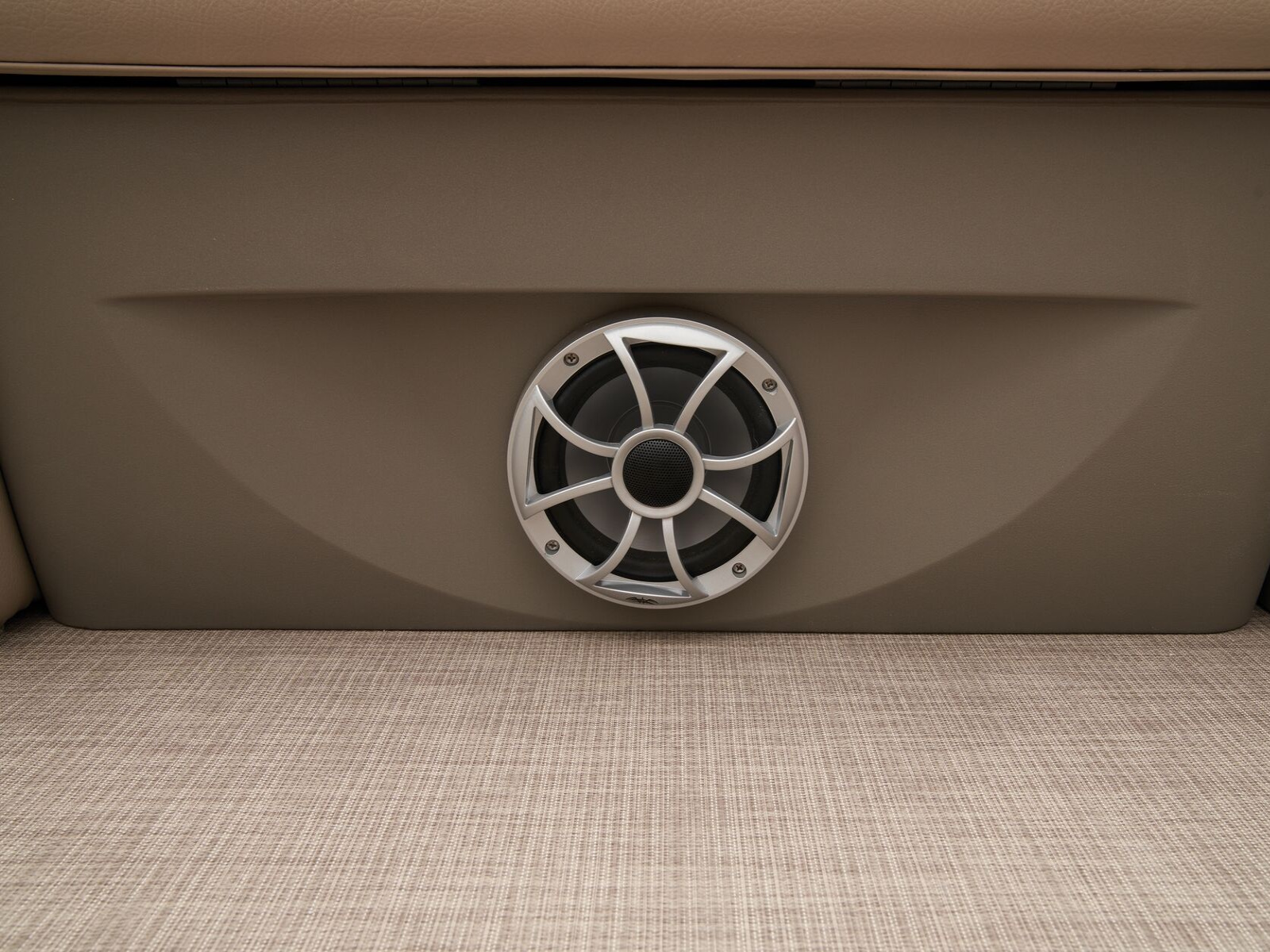

• Wet Sounds® stereo w/Bluetooth® & four 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases
• Master power on/off switch
• Recessed mobile phone cubbies
• USB charging receptacle

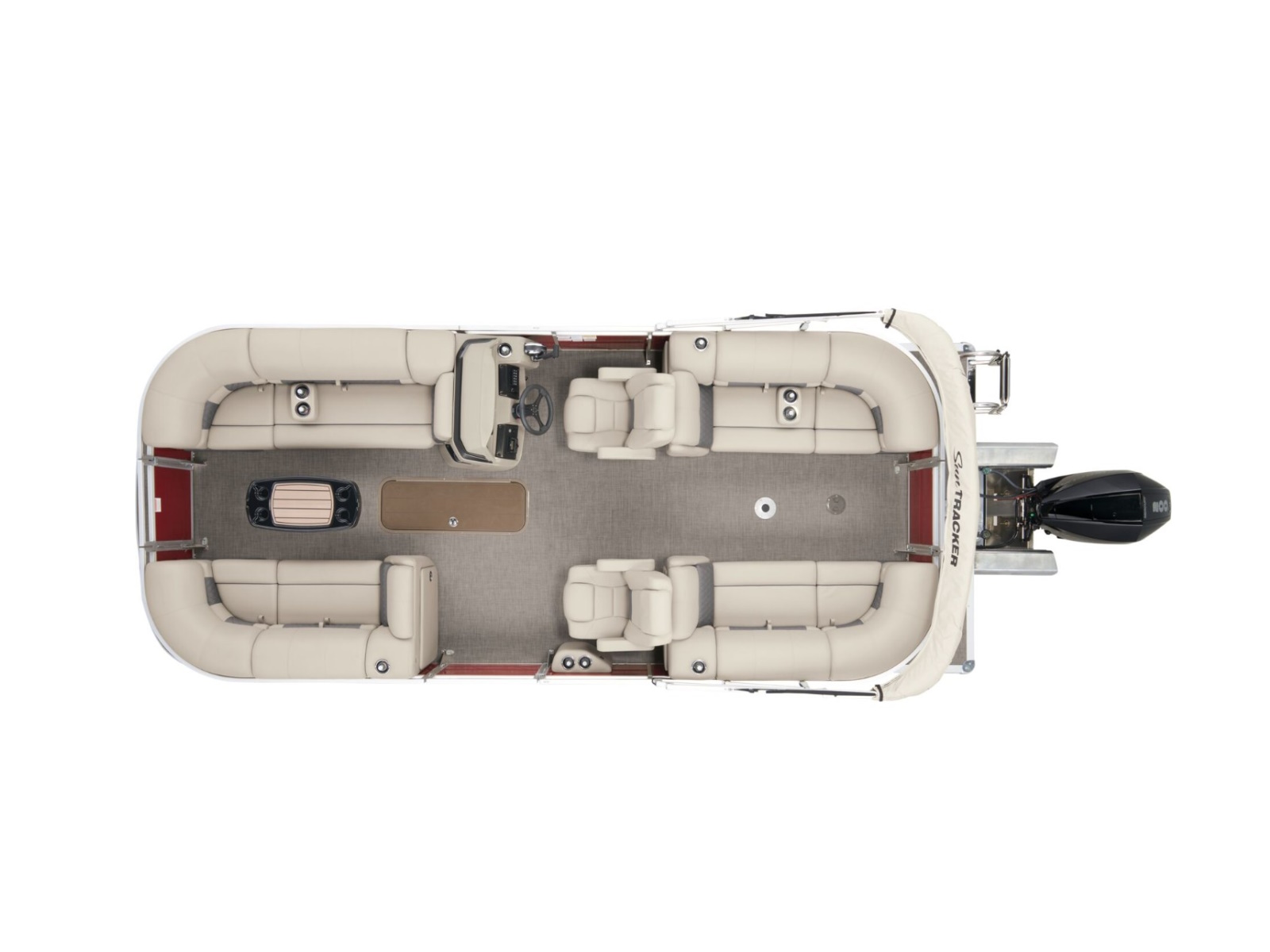

Interior

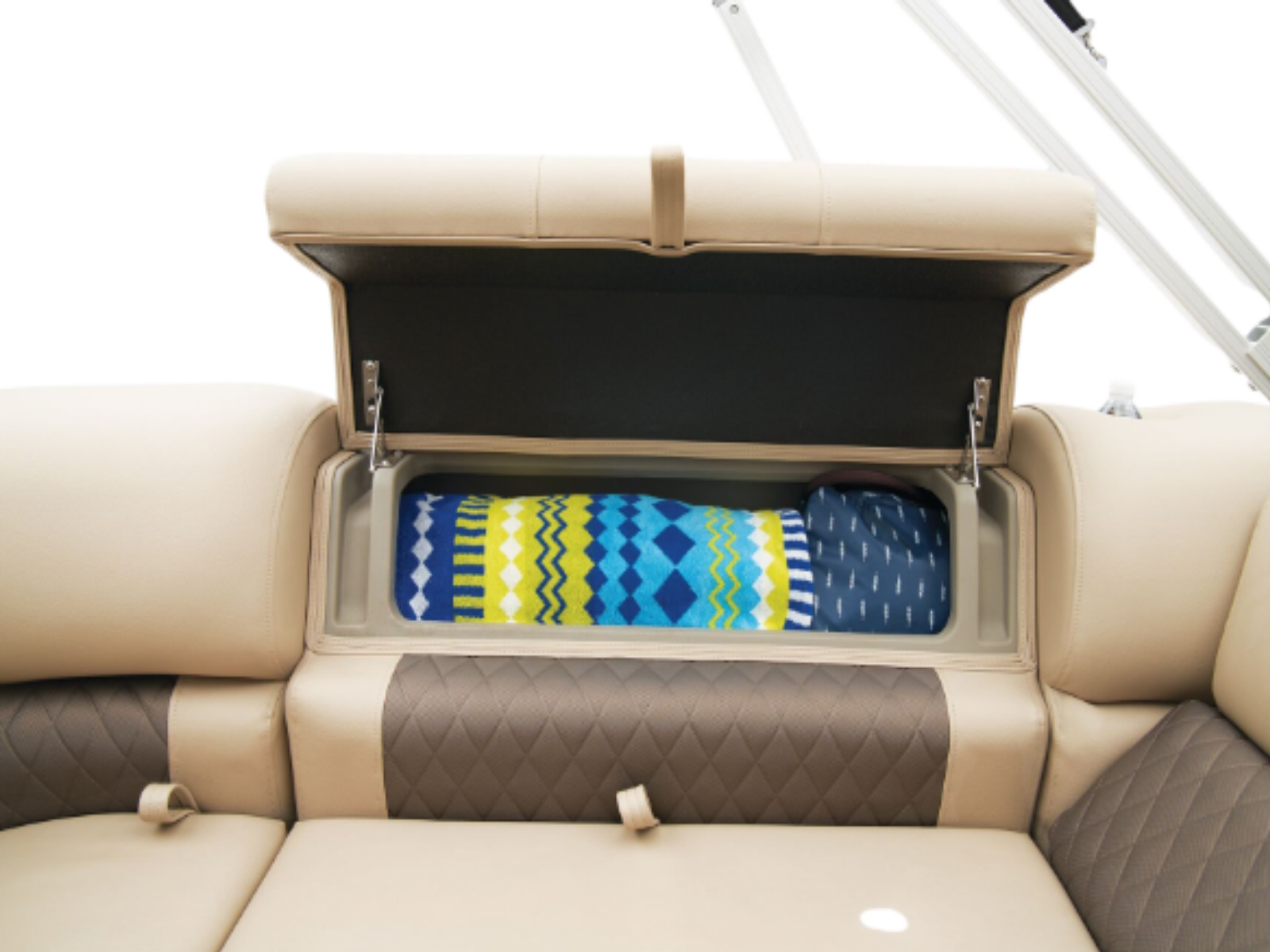

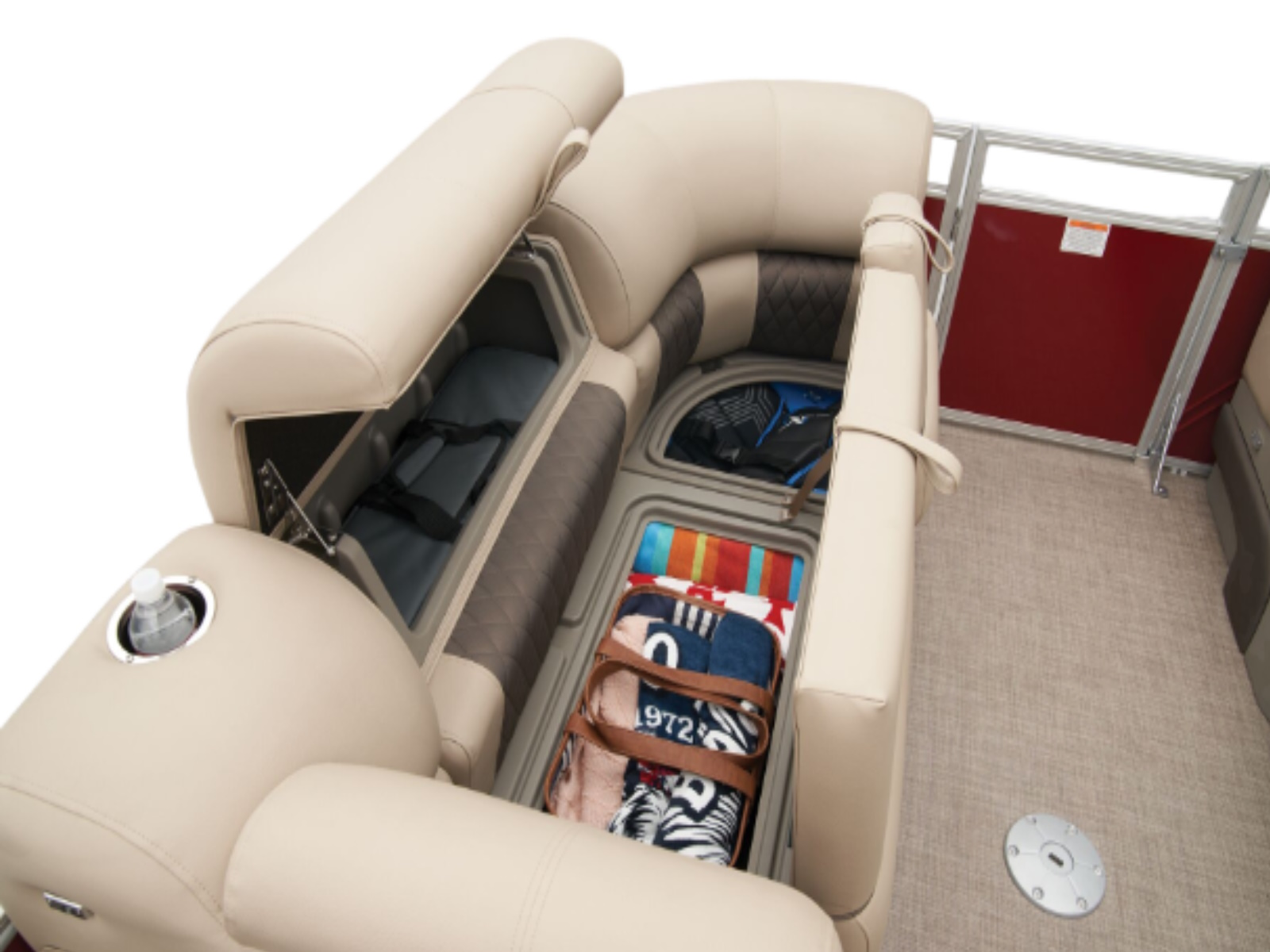

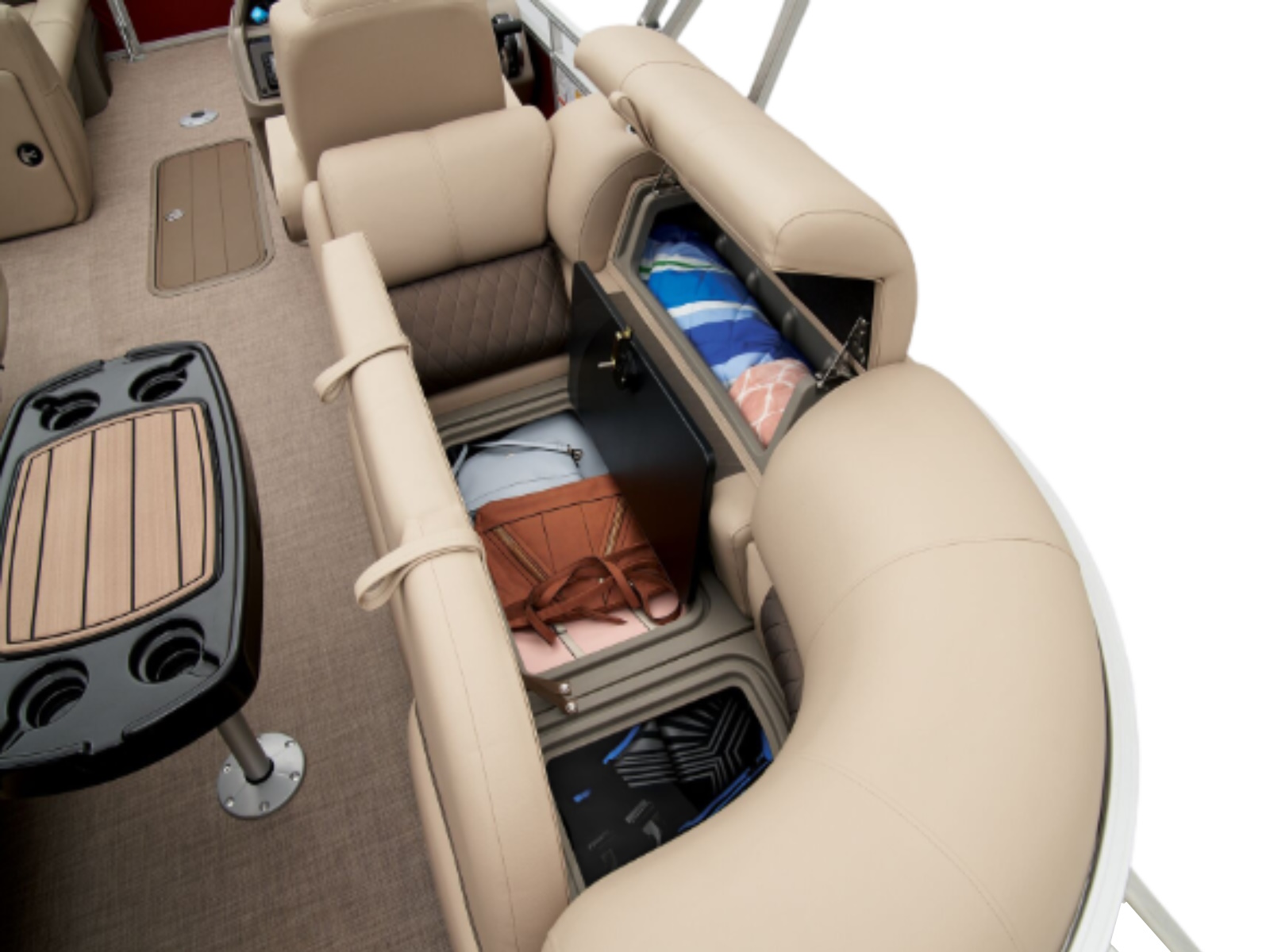

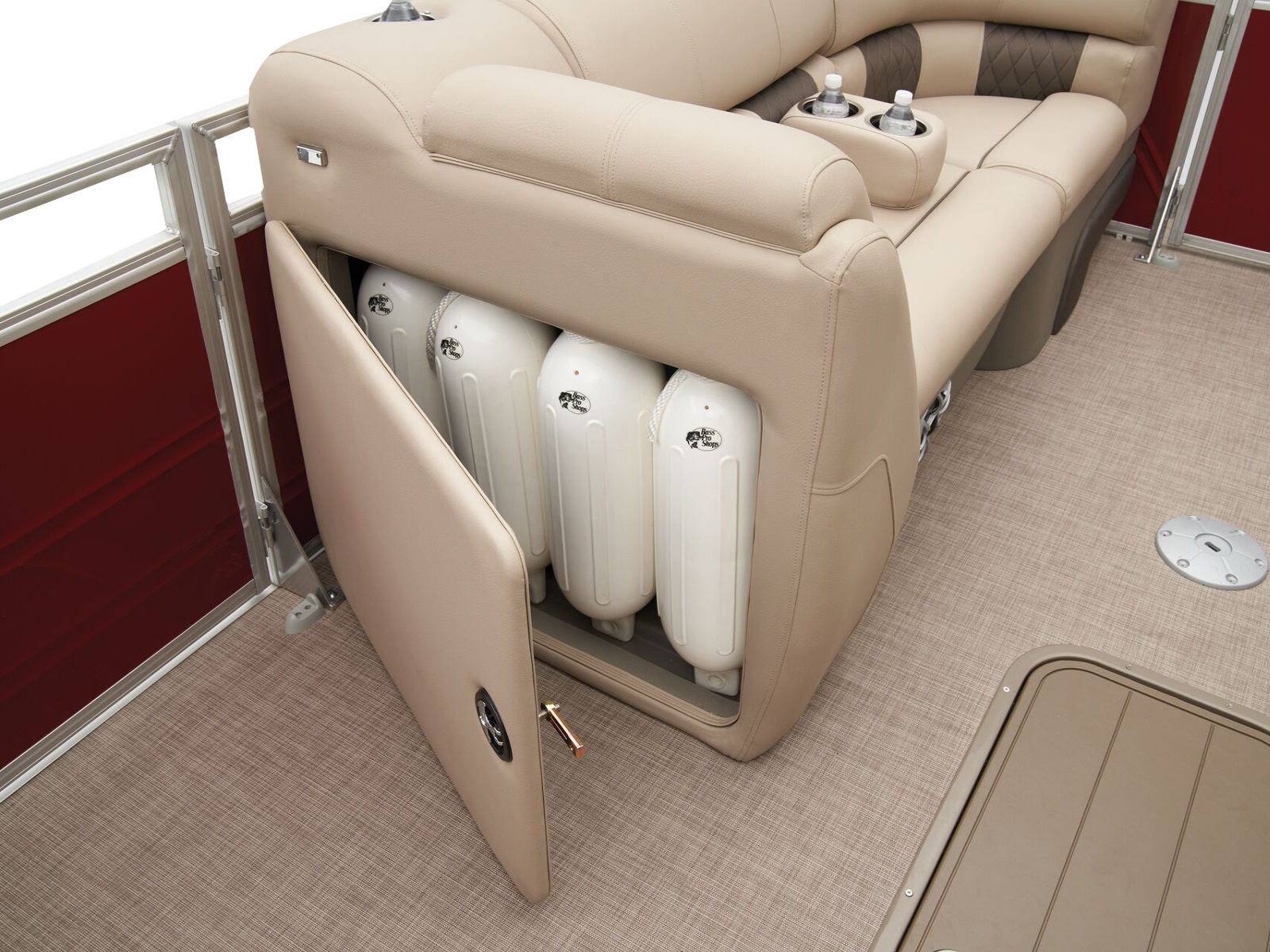

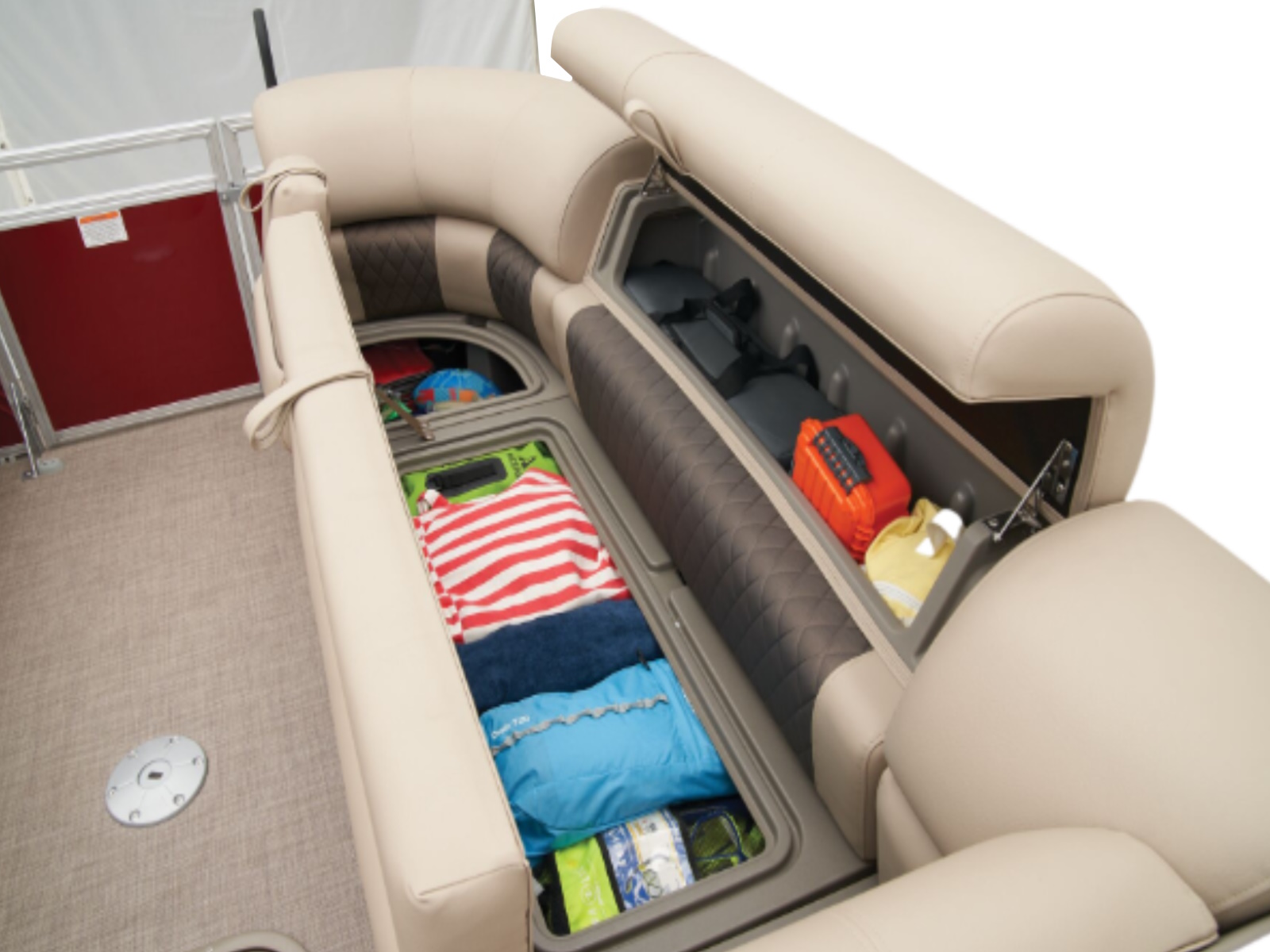

• Patented built-in STOW MORE™ seat-back storage system for all couches
• Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder
• Bow starboard console couch w/STOW MORE™ & underseat storage

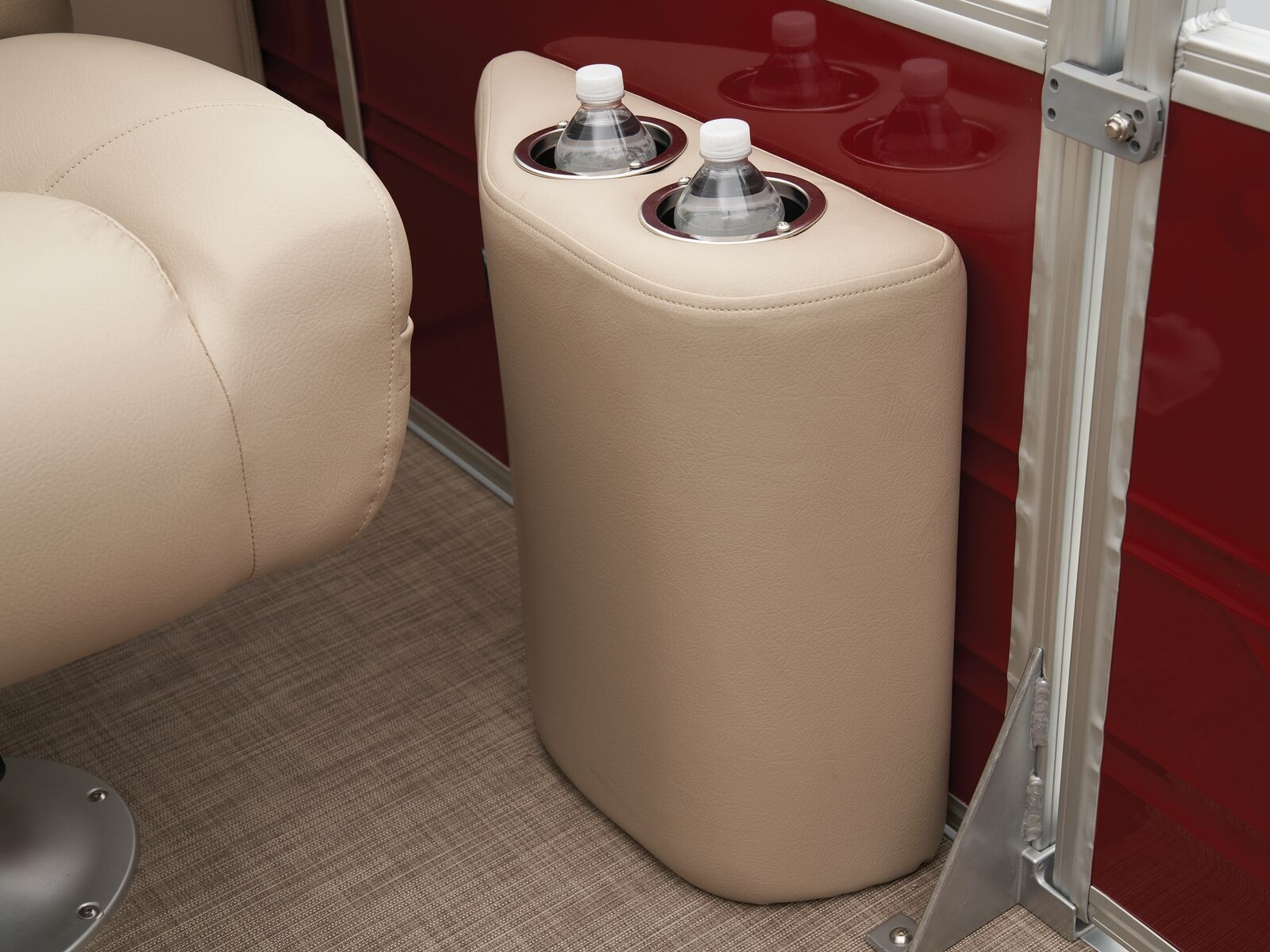

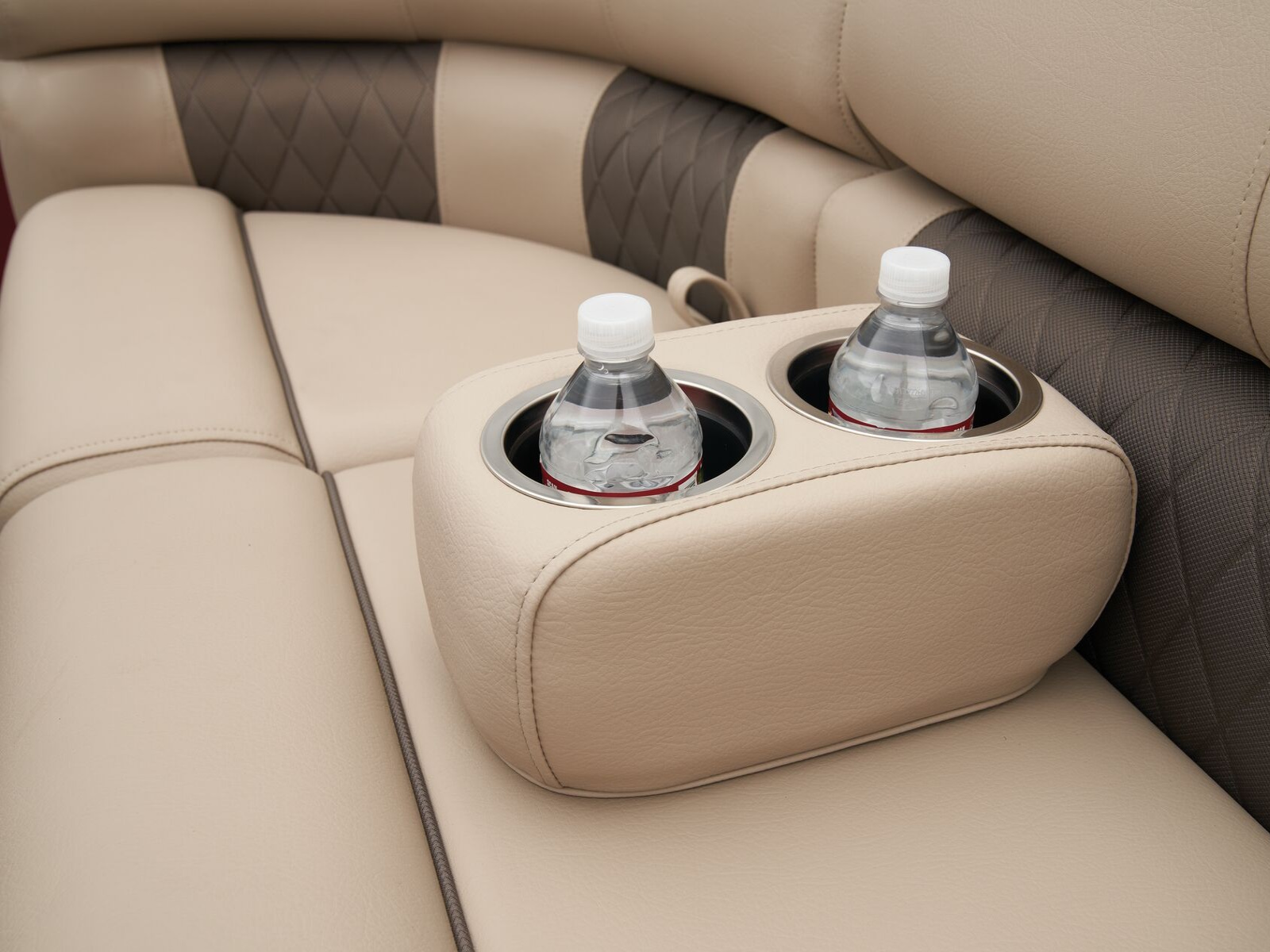

• 2 movable drink holders/armrests for couch seating

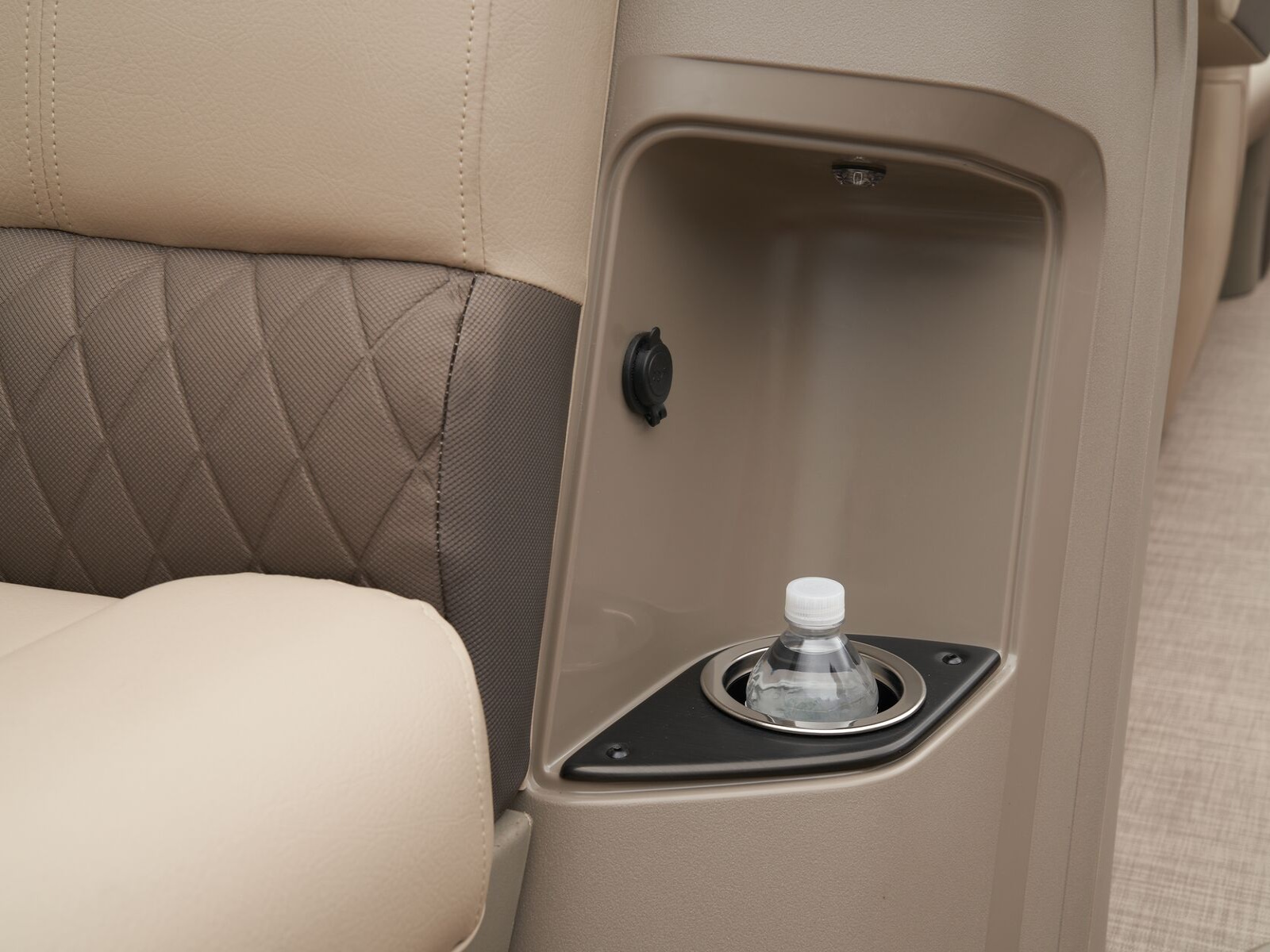

• Midship port side drink holder

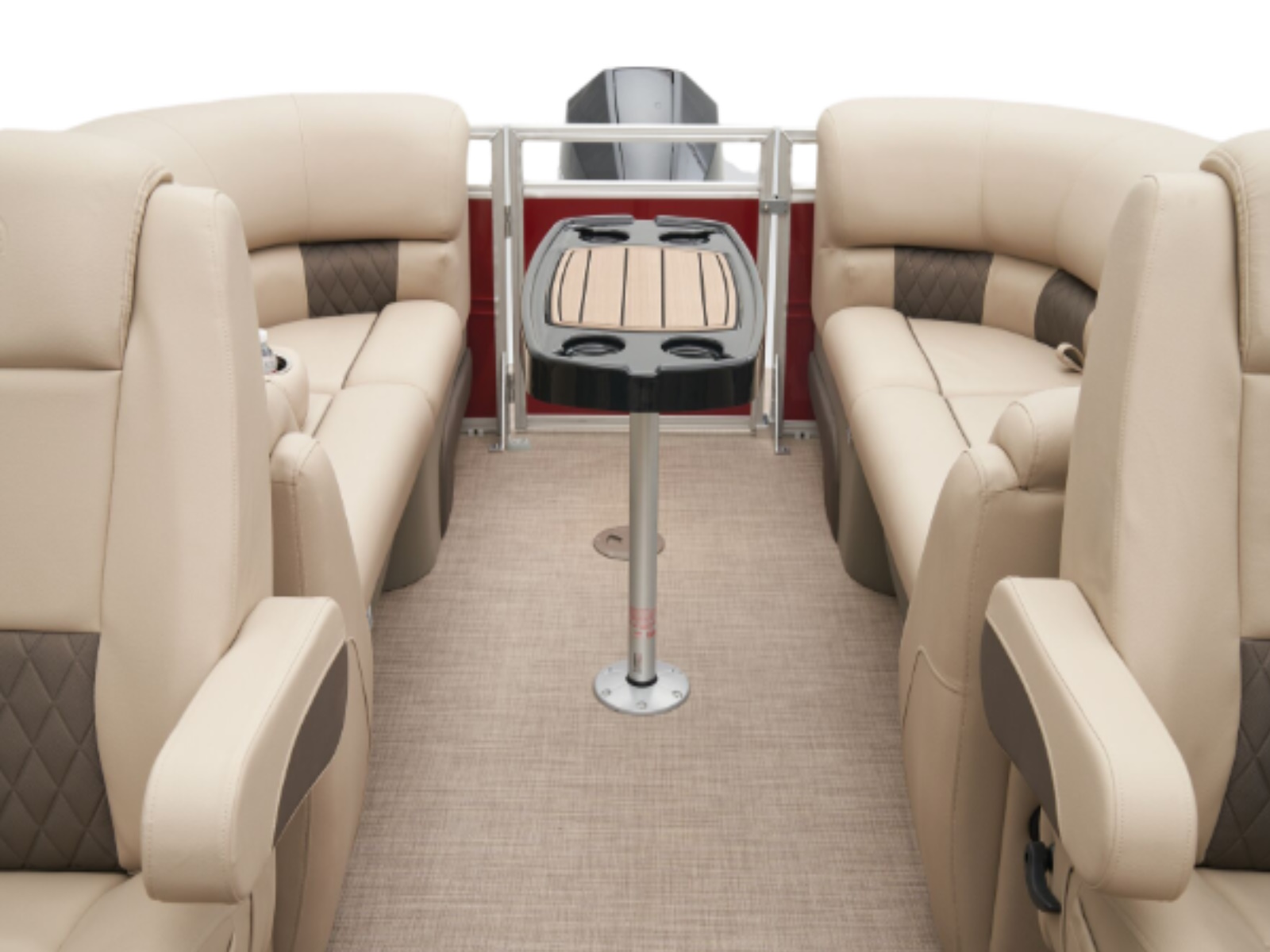

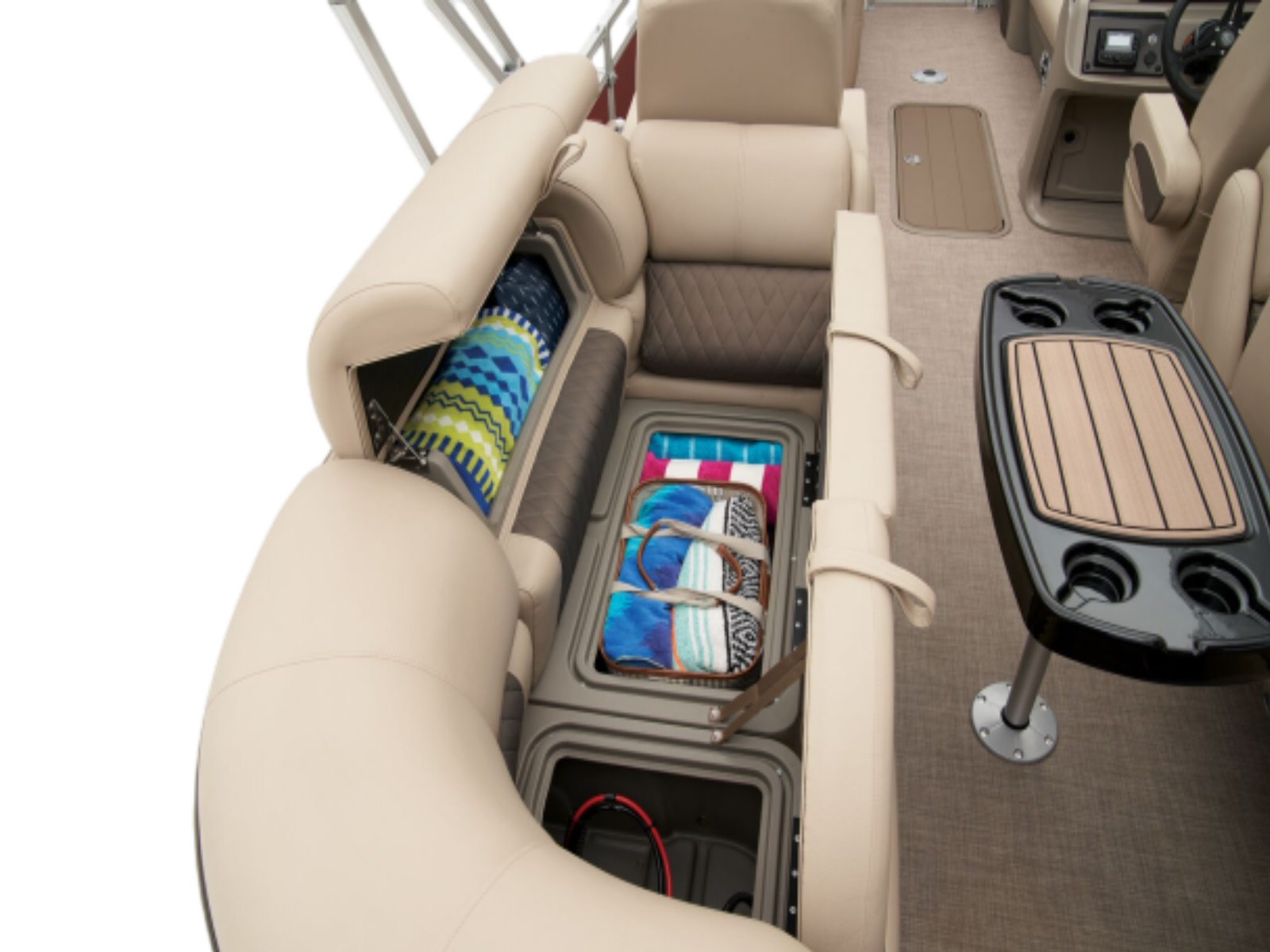

• Removable table w/soft-touch insert; 4 molded-in drink holders; & 2 pedestal base locations

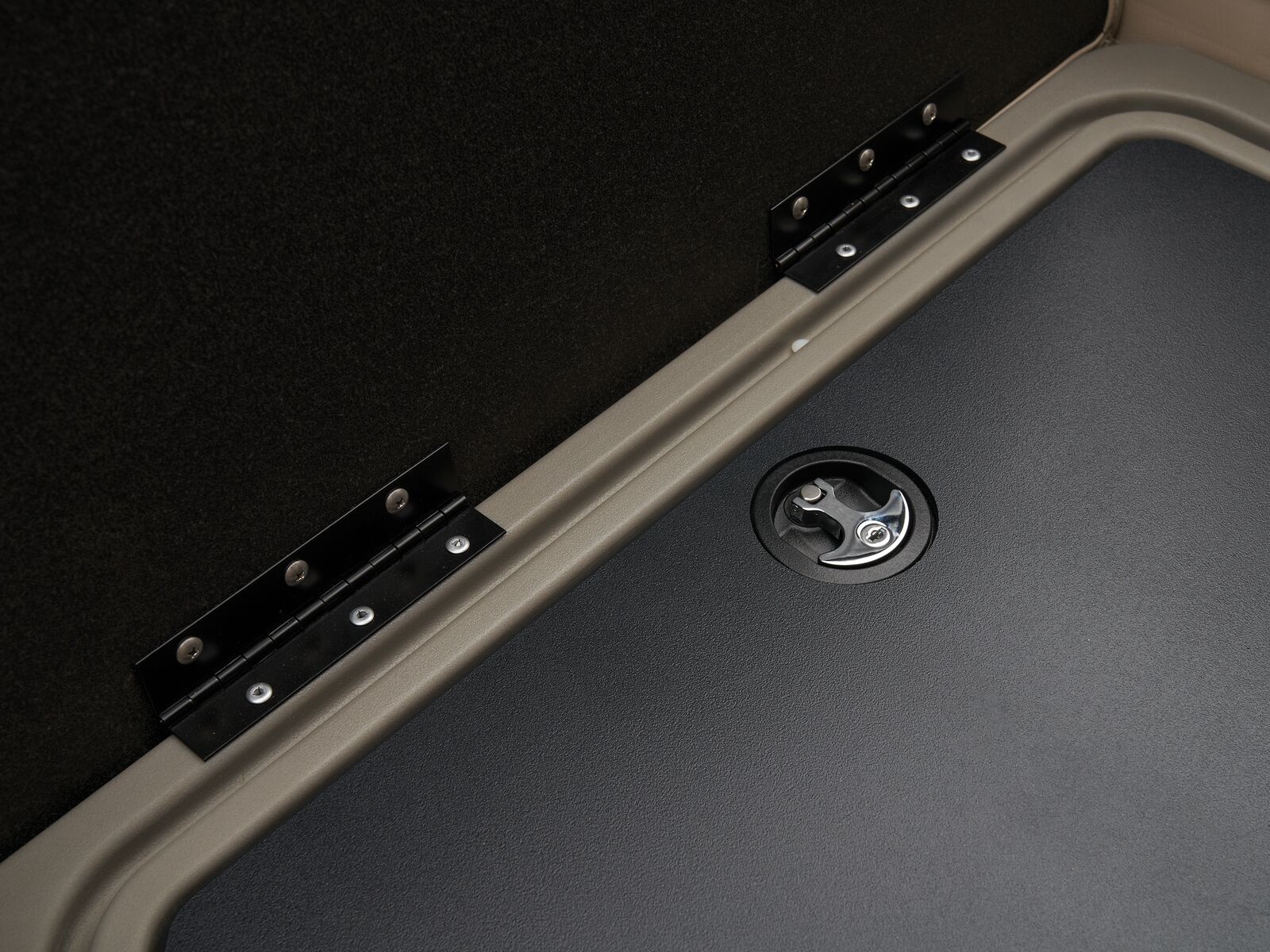

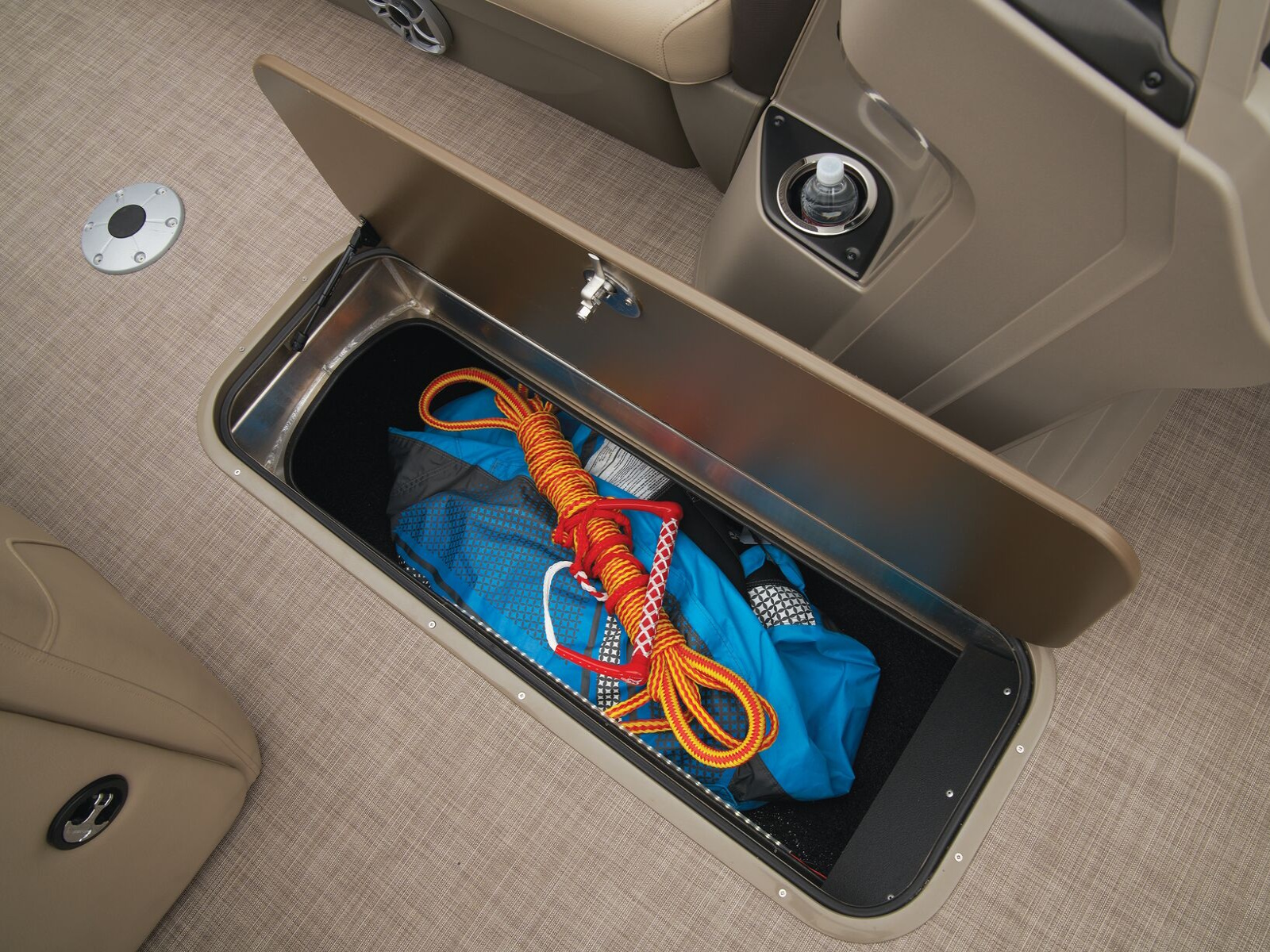

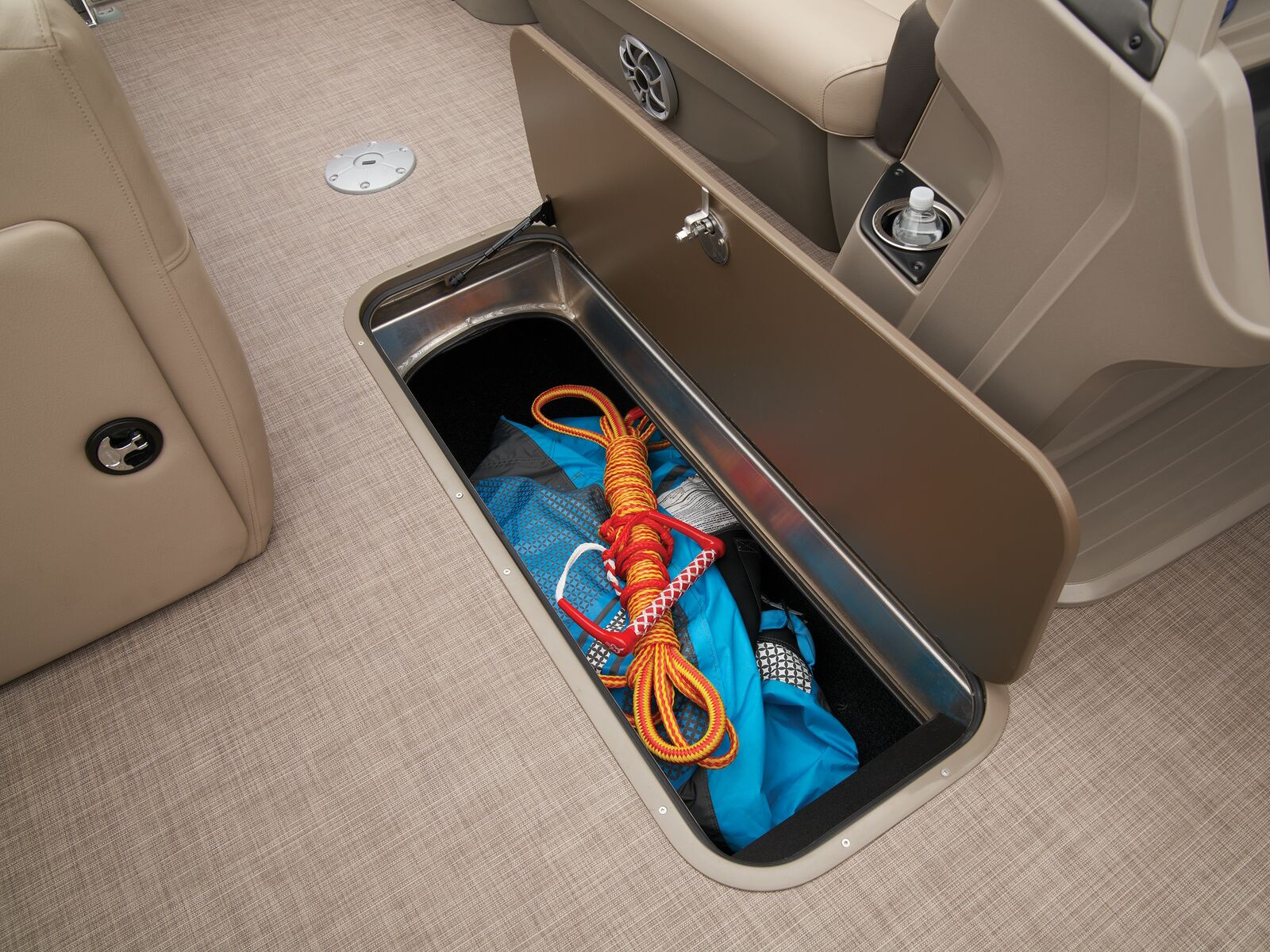

• In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep­ — w/bilge pump in center log

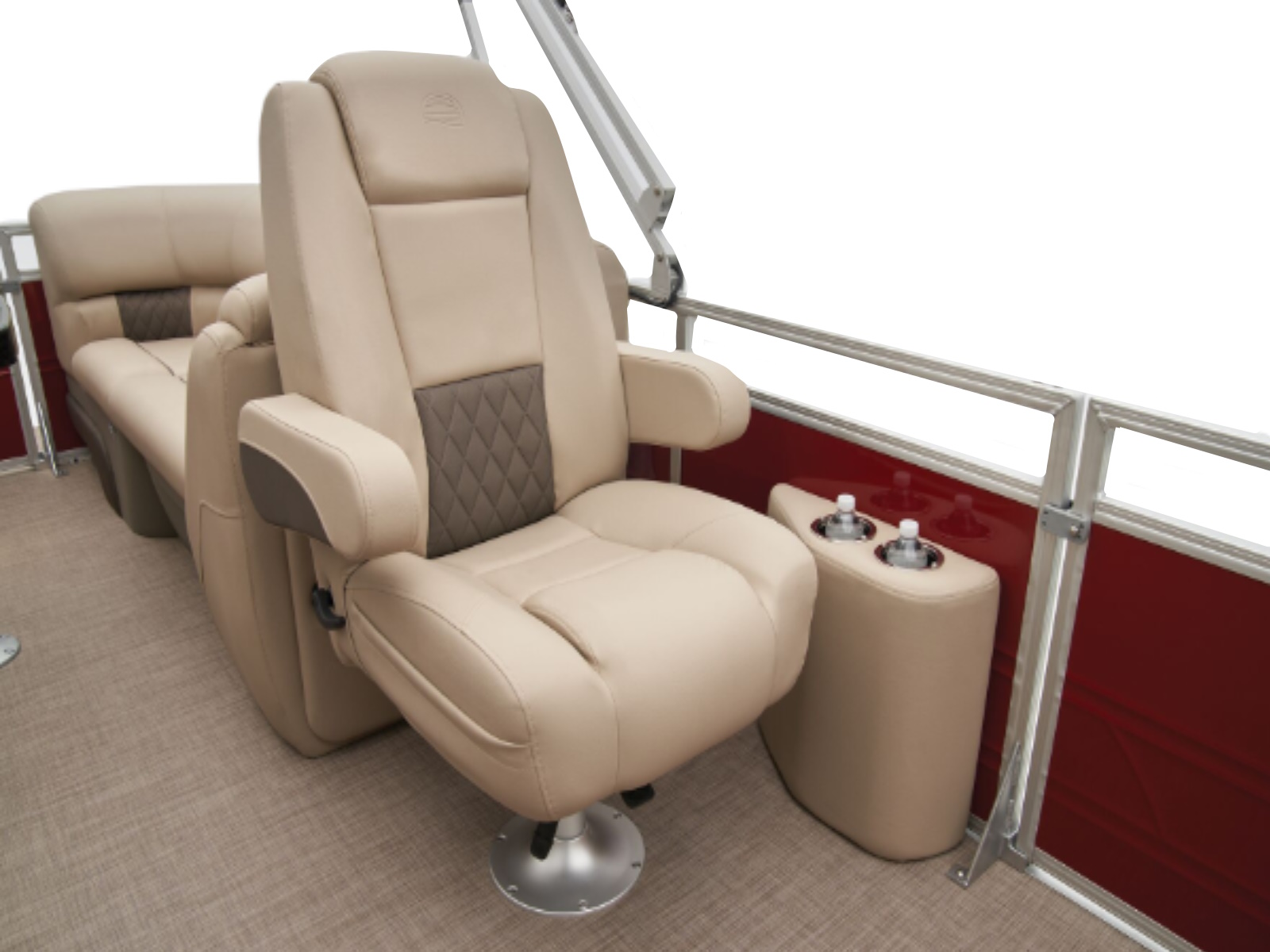

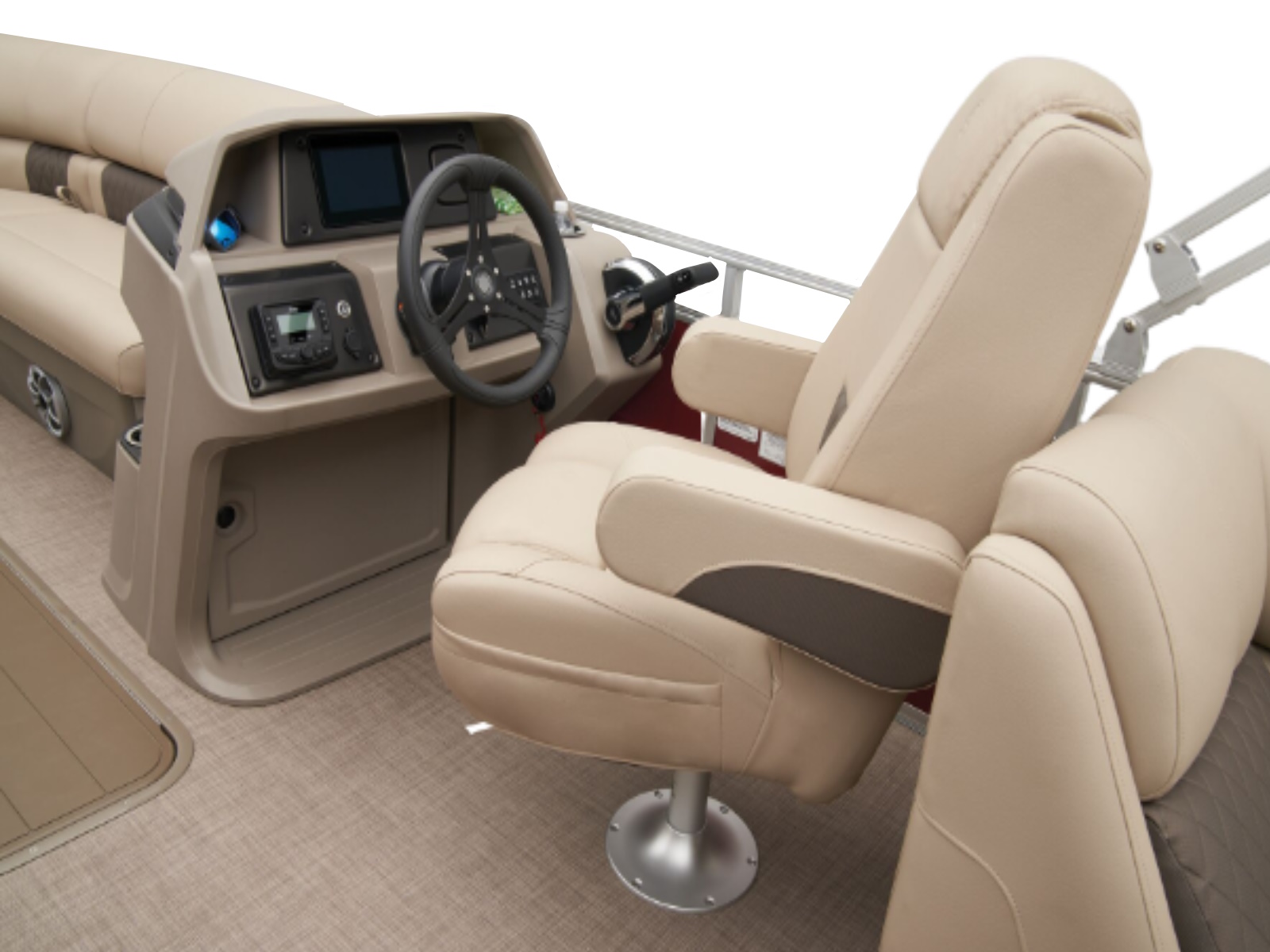

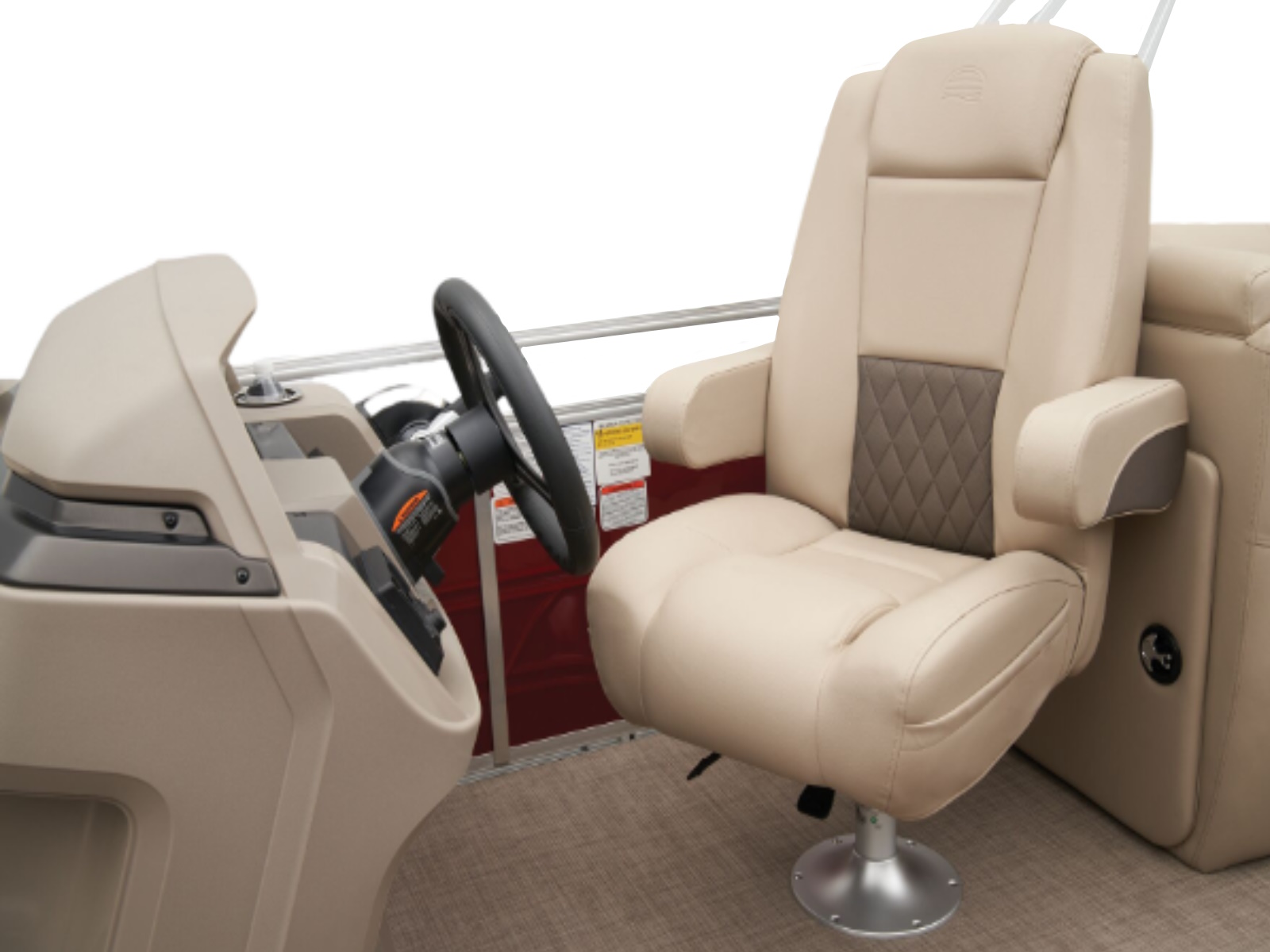

• Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests
• Aft port couch w/STOW MORE™ & underseat storage
• Aft starboard couch w/STOW MORE™ & underseat, lockable storage

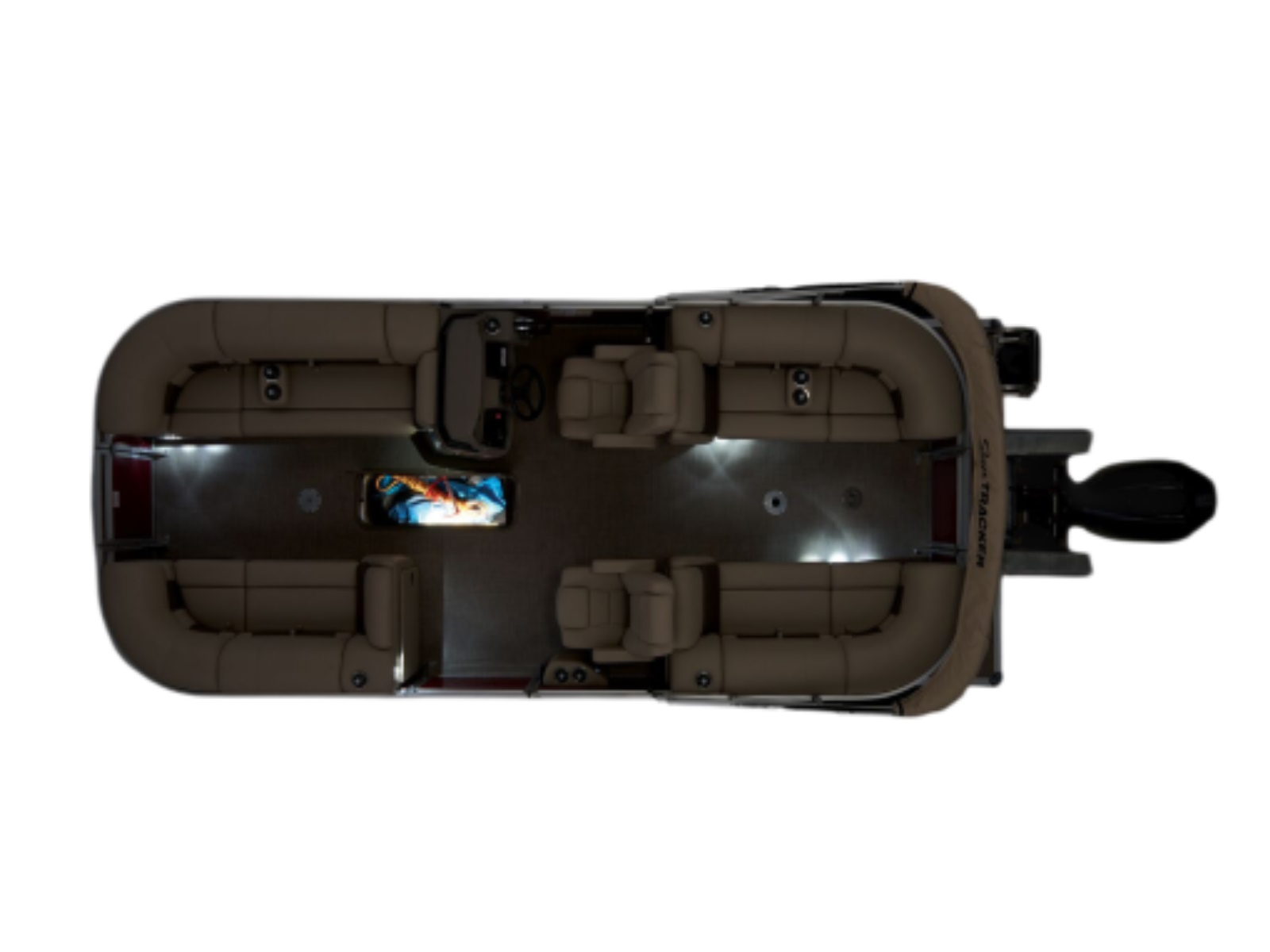

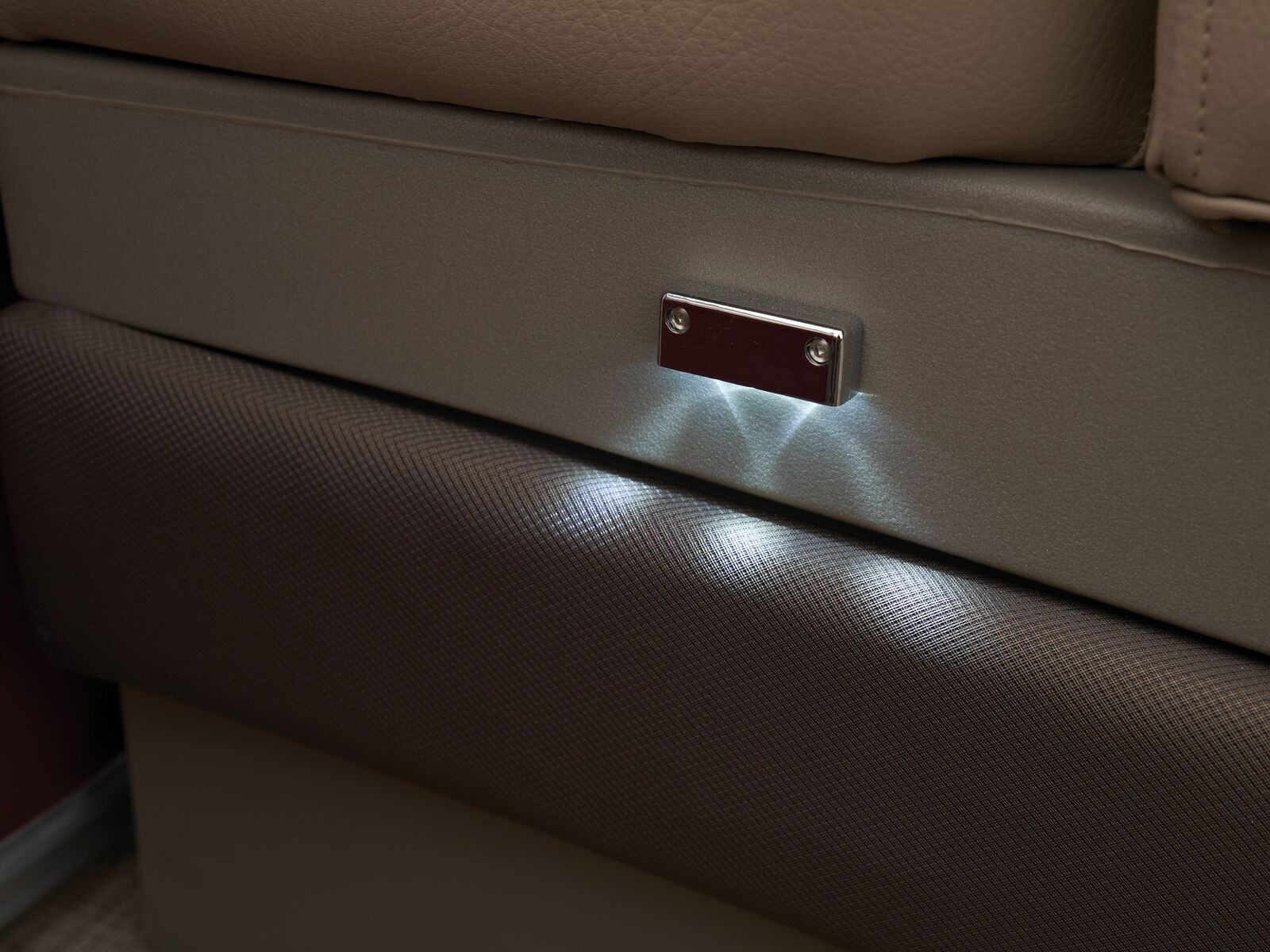

• Interior courtesy lighting
• Full-width aft swim deck

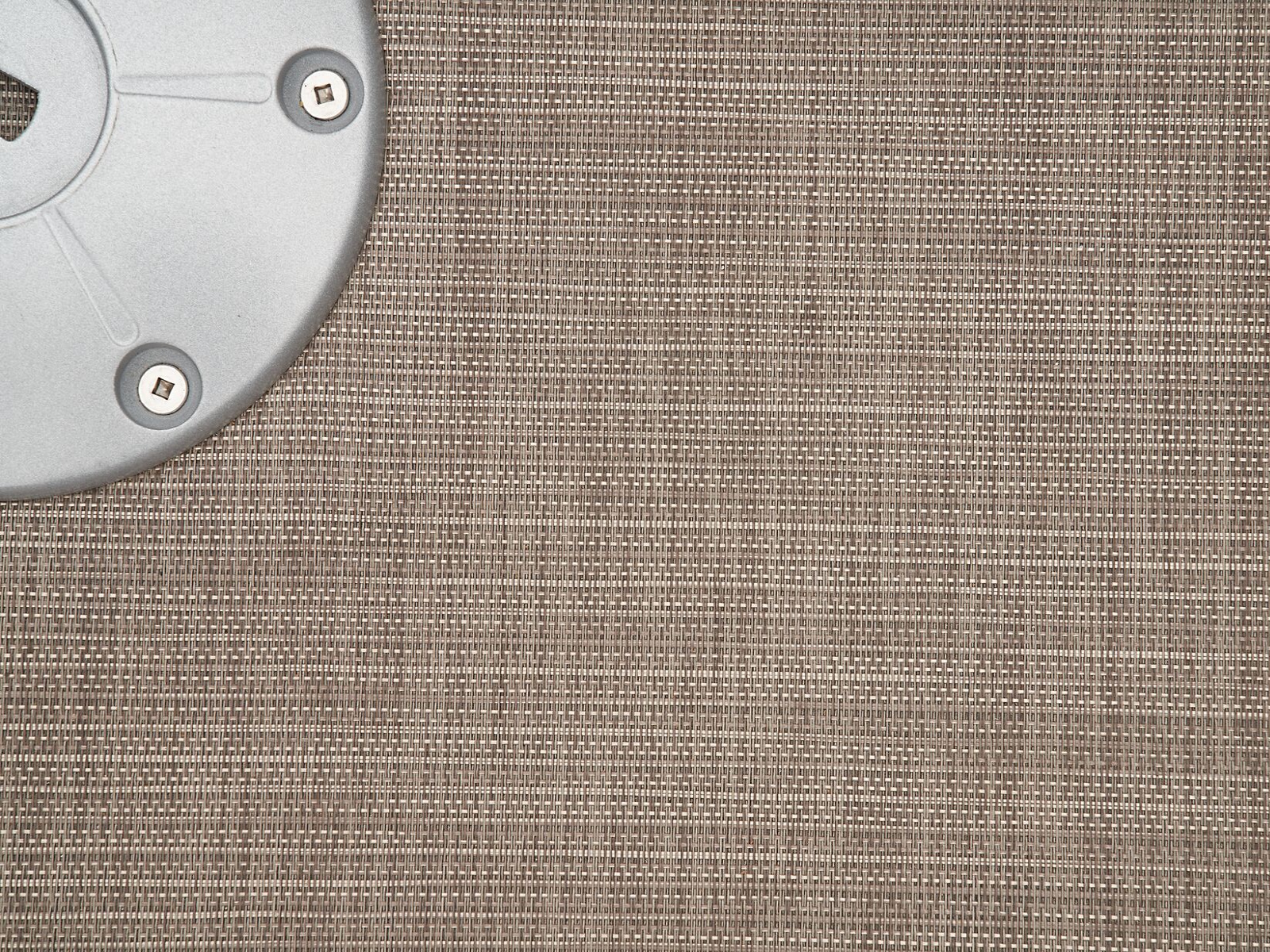

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

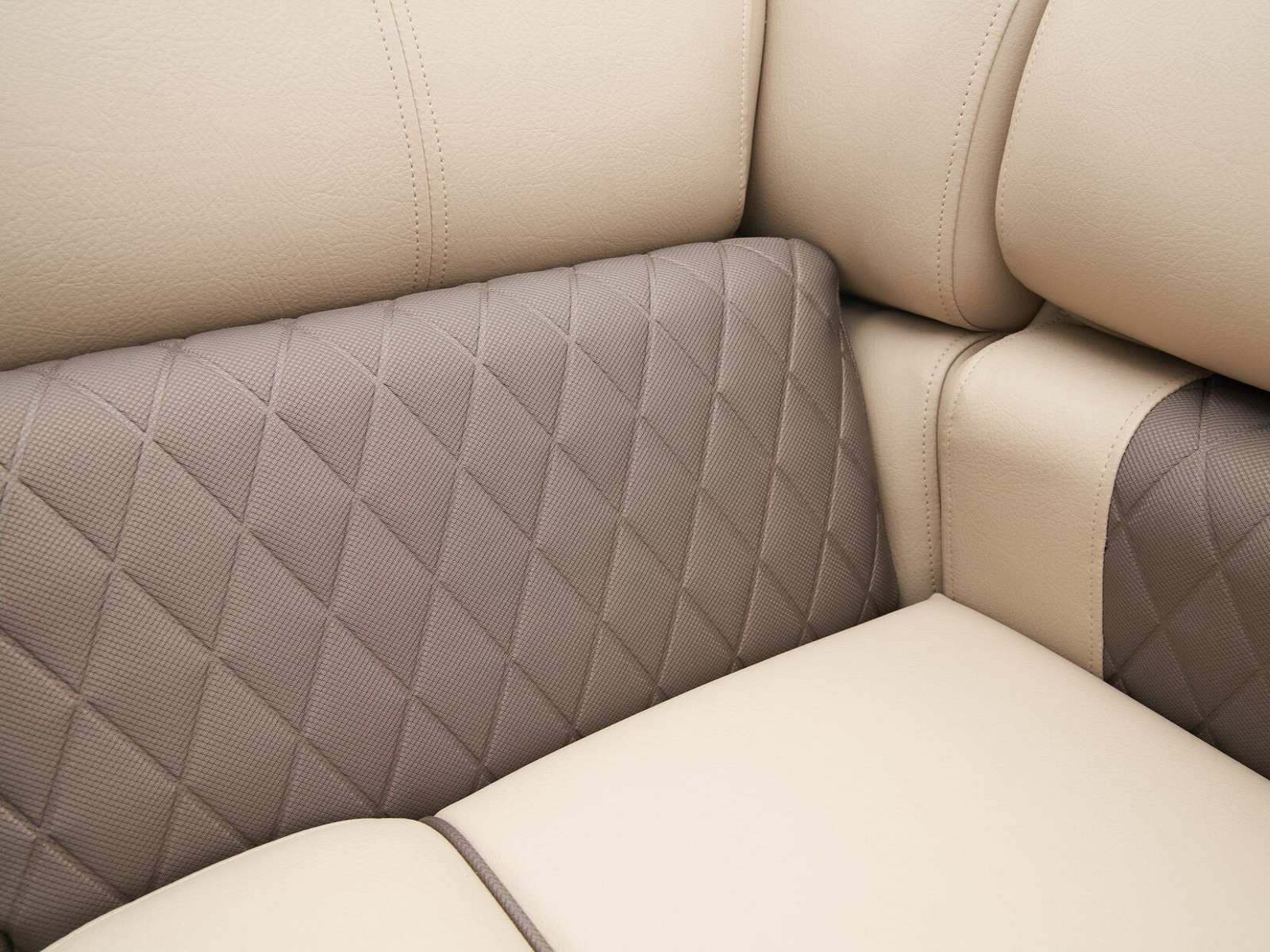

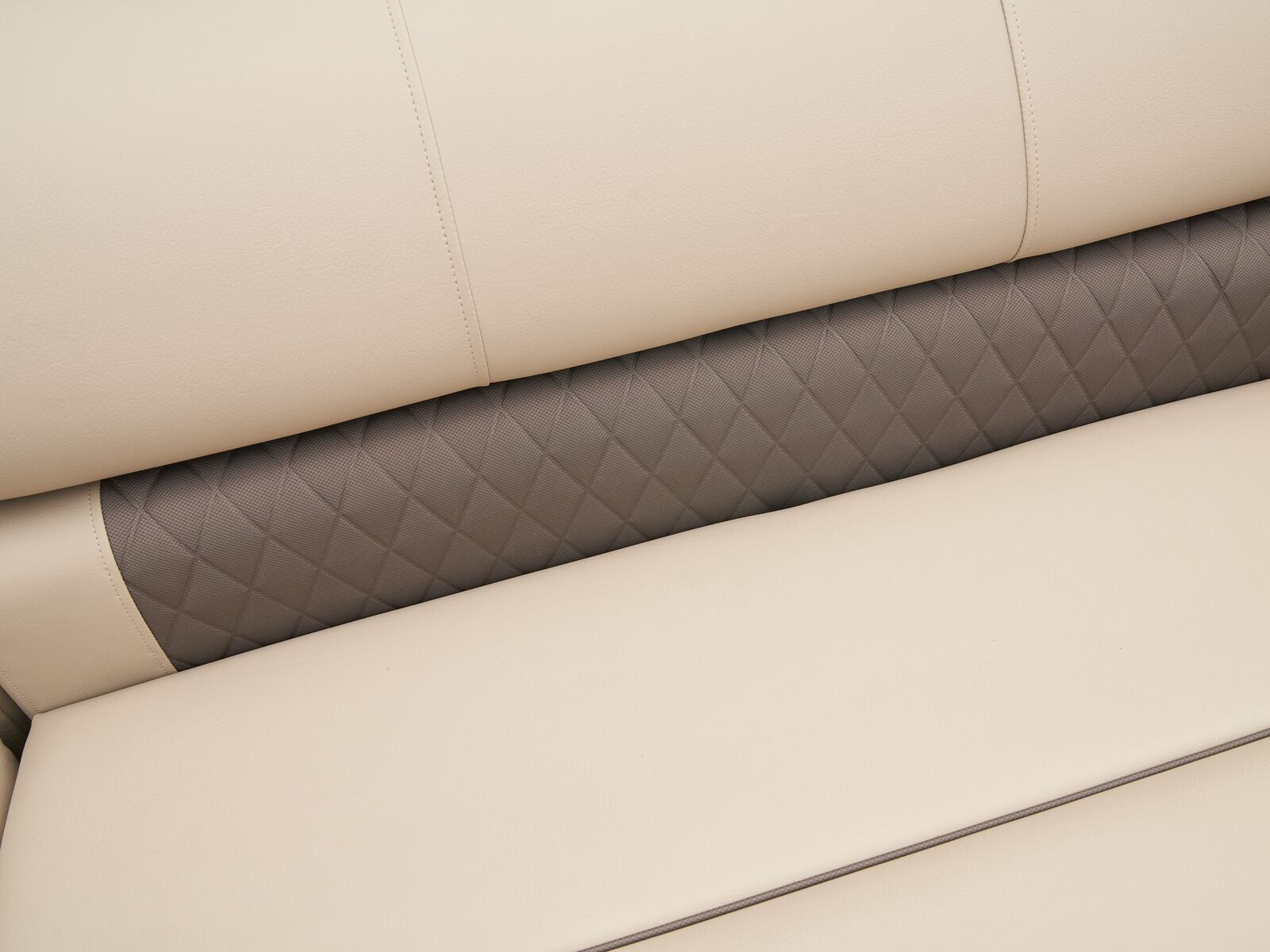

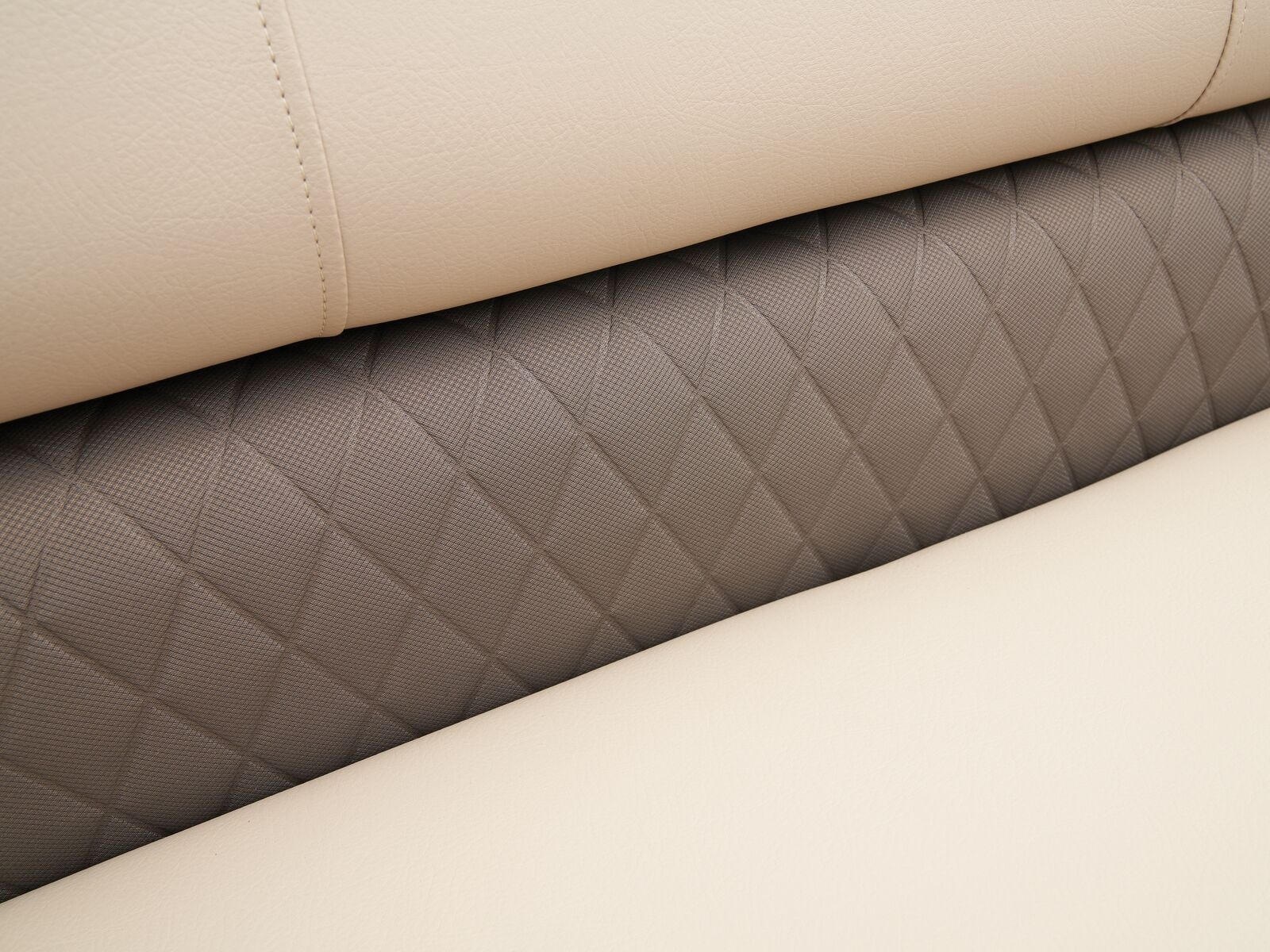

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Performance

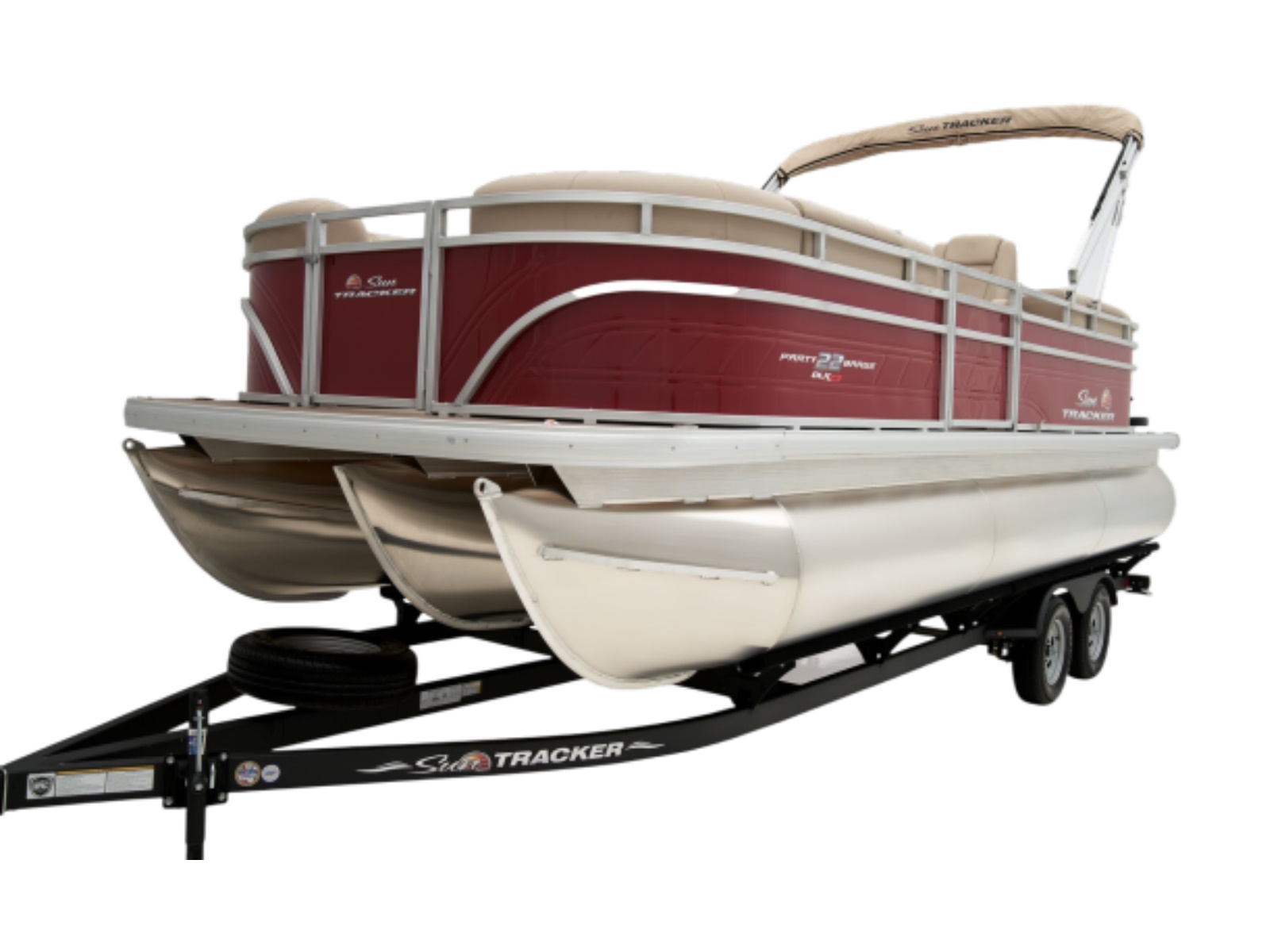

• Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
• XP3 performance strakes & wave-deflecting nose cone for maximum performance
• Full-length, 1-piece longitudinal M-bracket deck supports

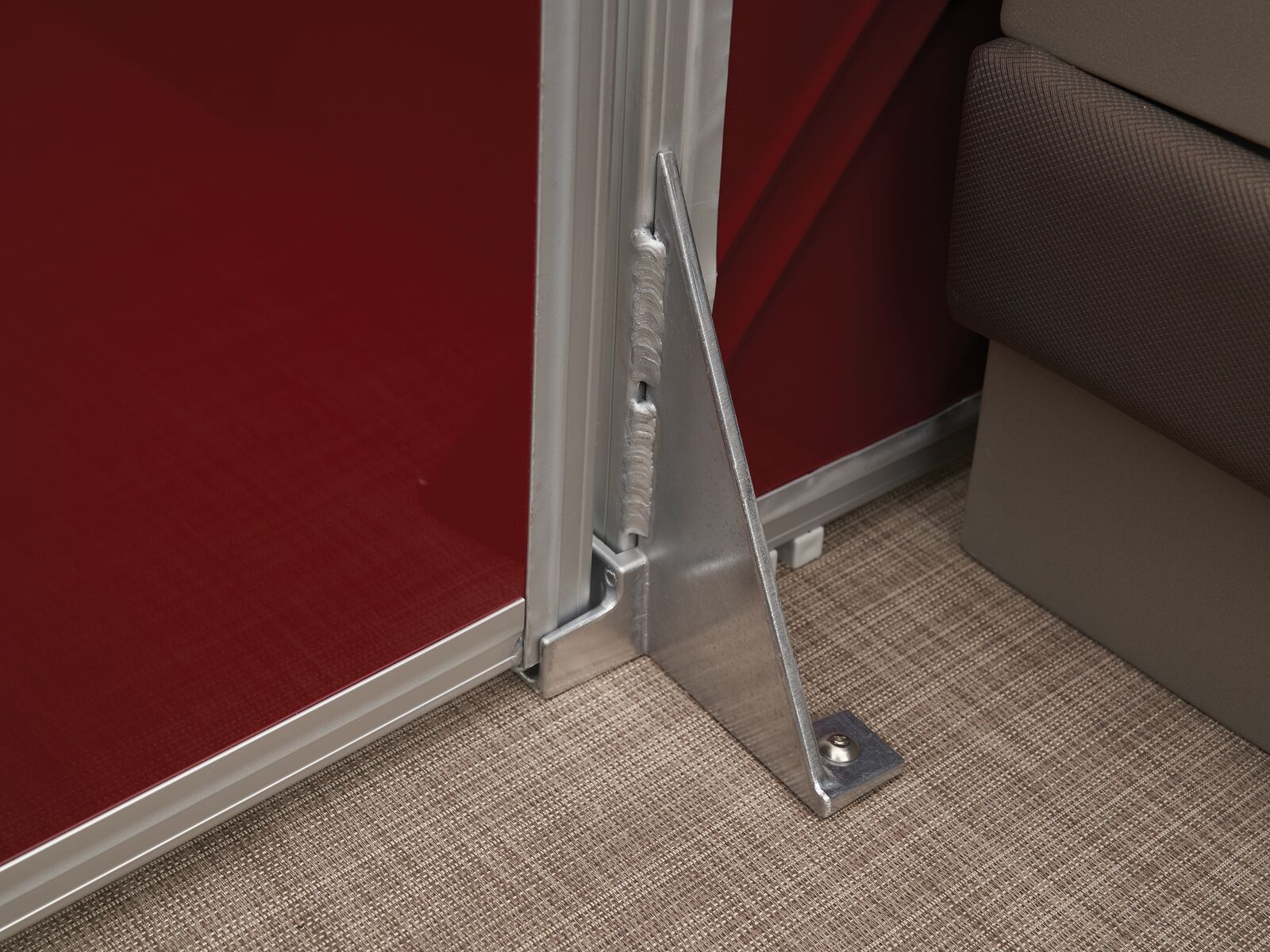

• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
• Heavy-duty aluminum U-channel reinforcement behind bow deck trim
• Reinforced bow & stern structures

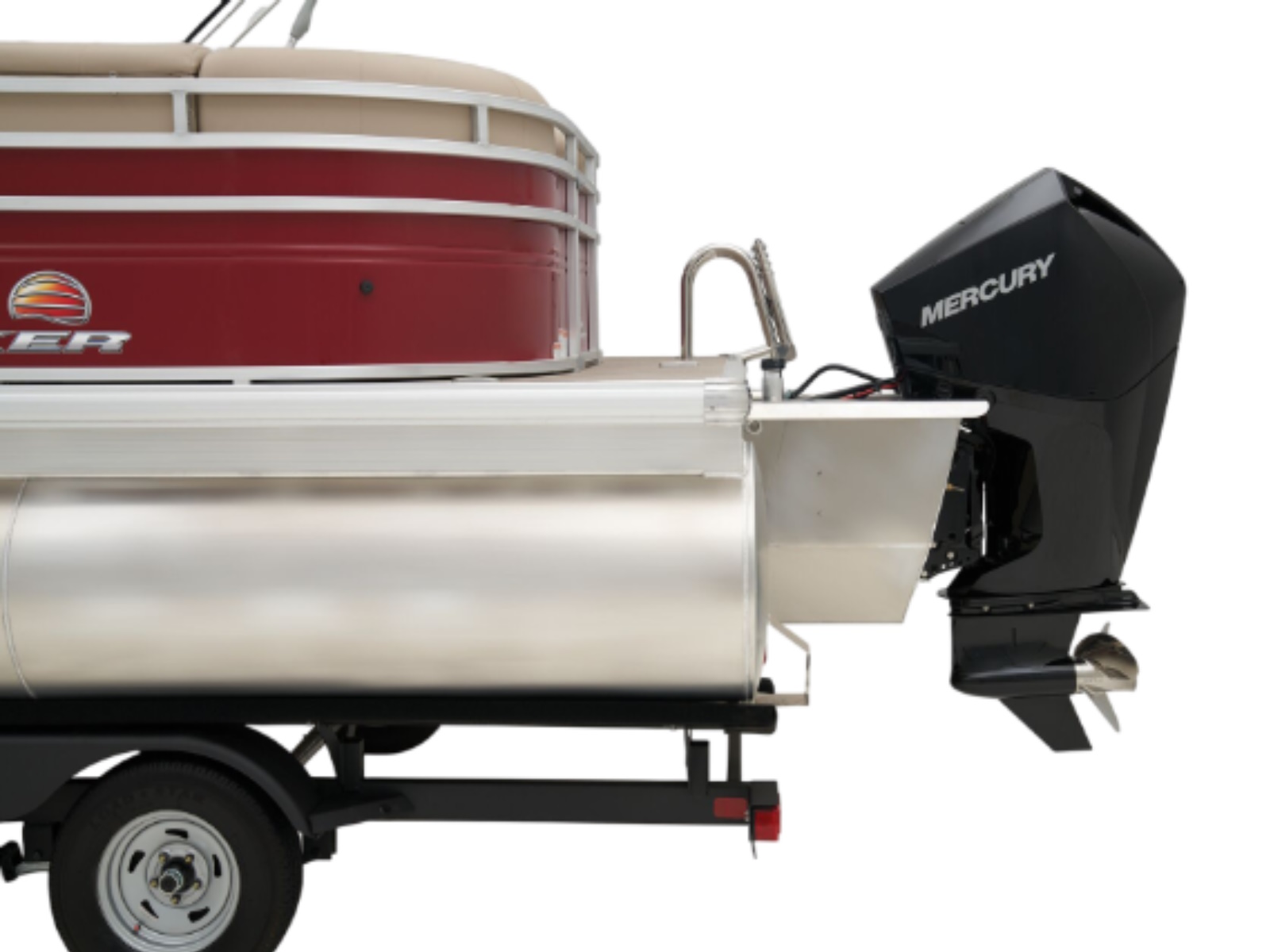

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
• All-aluminum box-beam transom for strength & longevity
• Factory-installed underpinning (under-deck shielding) for improved performance
• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
• Sound- & vibration-deadening fence insulation for a quiet ride
• Extruded & anodized aluminum deck edging w/polished aft corner covers
• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
• Rotomolded storage, furniture & console for superior strength & longevity

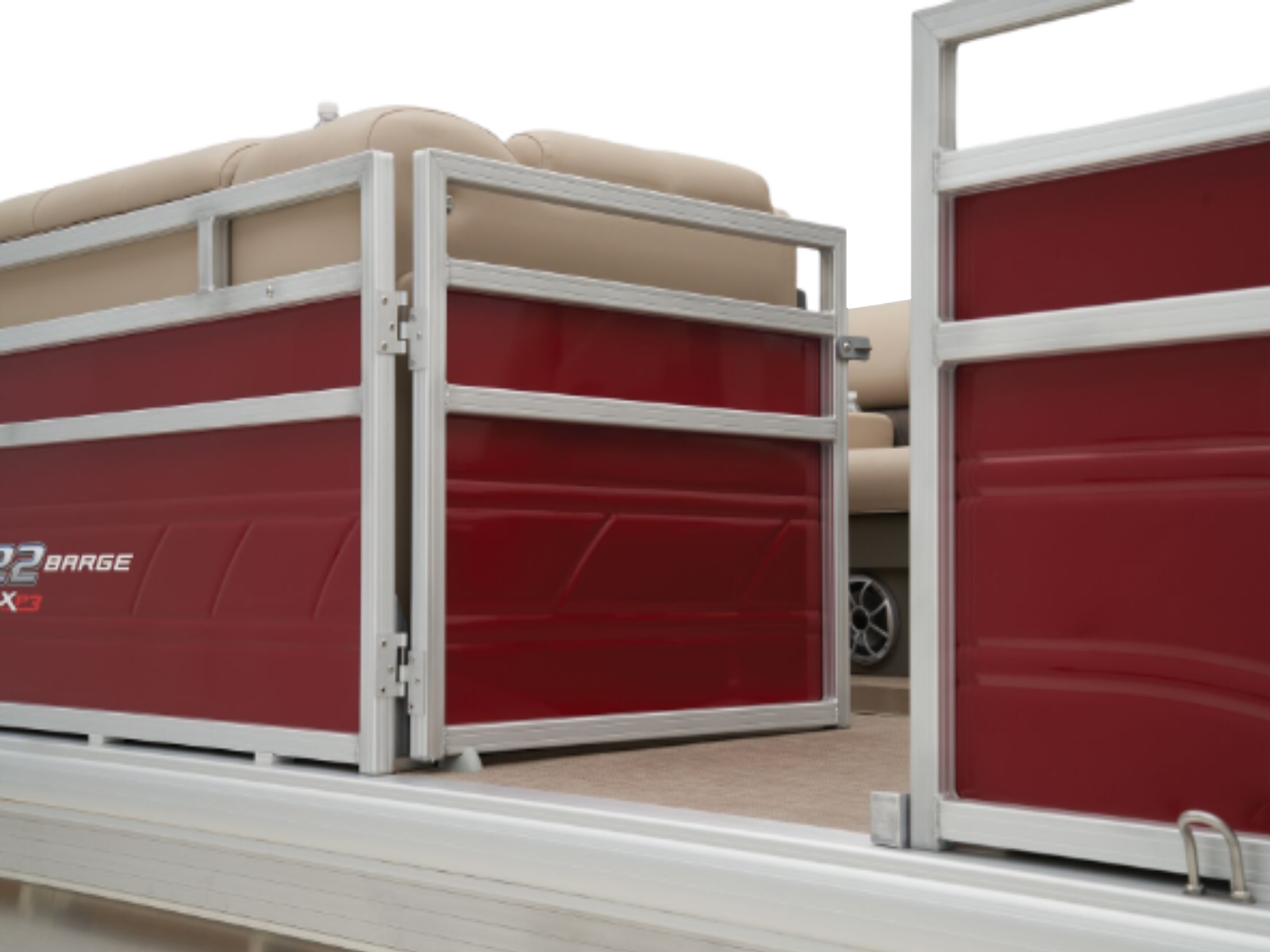

• Nylon gate latches & heavy-duty hinges that open inward
• Stainless or coated corrosion-resistant fasteners
• Factory-matched aluminum propeller

Exterior

• Color: Charcoal or Copper Red fencing

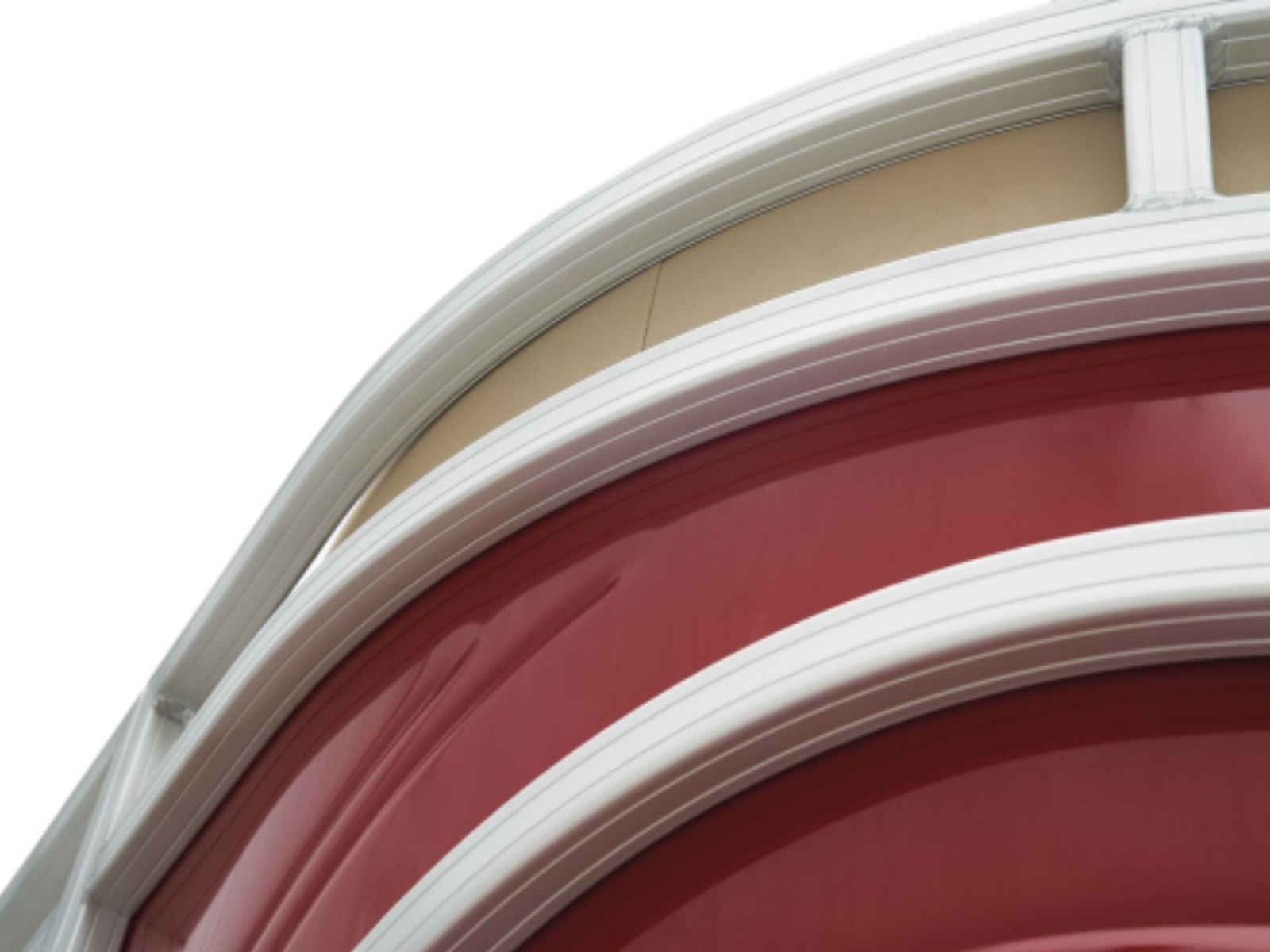

• Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics
• Exterior styling w/XP3 graphics package
• Elevated fence panels for deck drainage & ventilation

Electrical

• 500 GPH (1892.71 LPH) Ultima automatic bilge pump

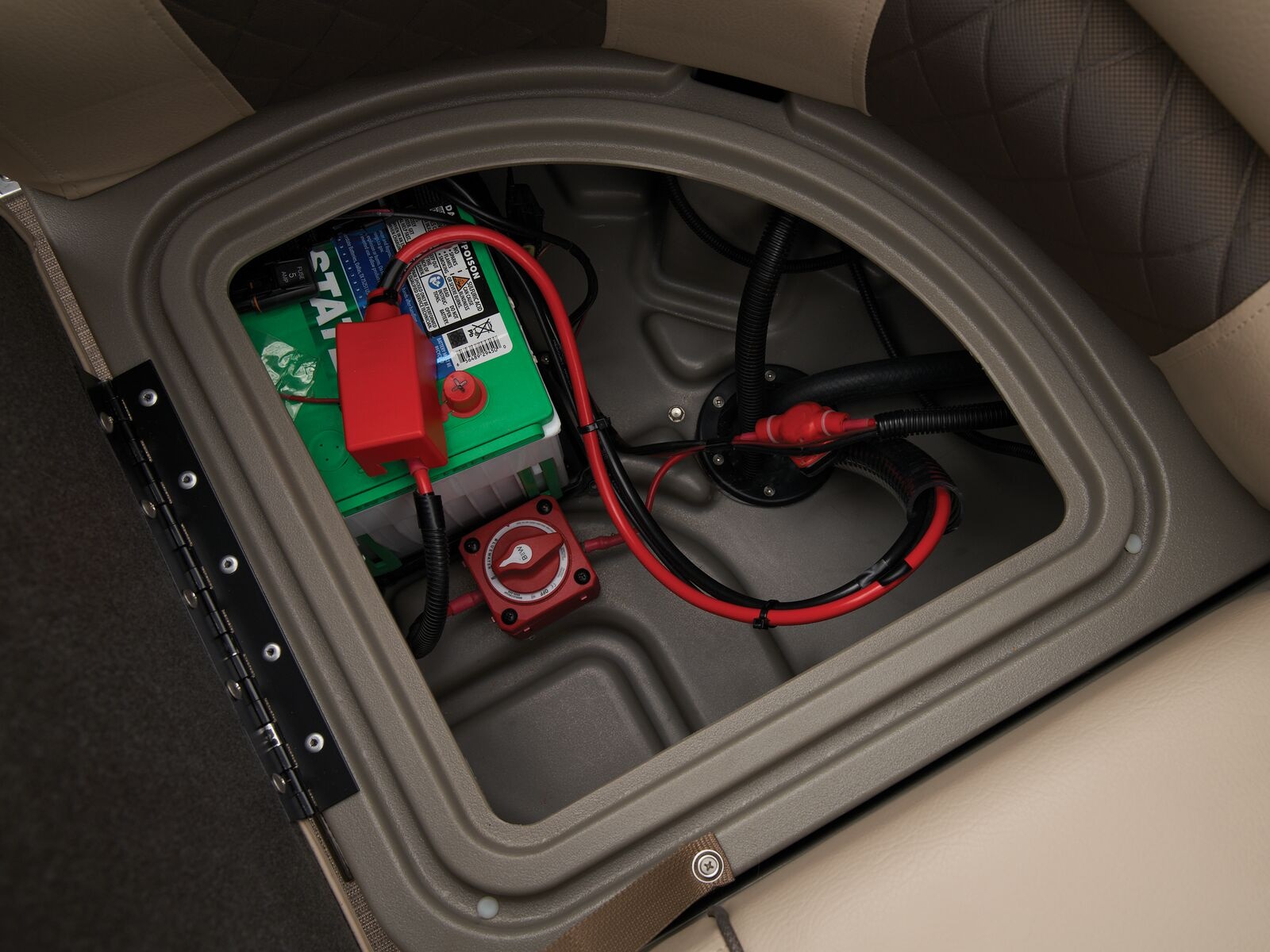

• Battery disconnect switch
• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
• Protective abrasion-resistant wire wrap
• Water-resistant connectors
